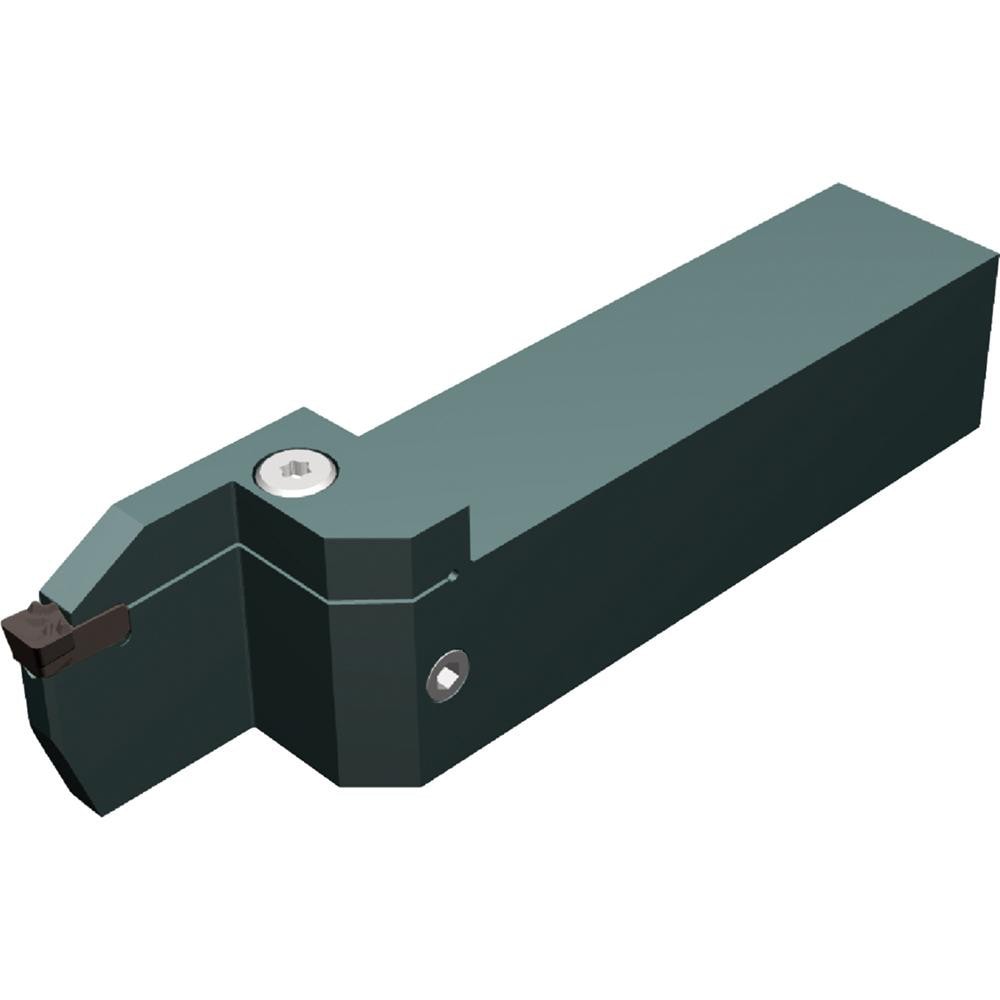

Brand: Widia / Part #: 6461962
Item #: 98382567
Brand: Widia
Model #: 6461962
Product Specifications
| Internal or External | External |
| Maximum Depth of Cut (Decimal Inch) | 1.5750 |
| Hand of Holder | Right Hand |
| Maximum Groove Width (Decimal Inch) | 0.3150 |
| Minimum Groove Width (Decimal Inch) | 0.3150 |
| Toolholder Style | WGCSM |
| Tool Material | Steel |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | 0800 |
| Insert Compatibility | WG0800M08P08 |
| Shank Height (Inch) | 1-1/2 |
| Shank Height (Decimal Inch) | 1.5000 |
| Shank Length (Decimal Inch) | 4.5200 |
| Shank Width/Diameter (Decimal Inch) | 1.5000 |
| Shank Width/Diameter (Inch) | 1-1/2 |
| Series | WGC |
| Overall Length (Decimal Inch) | 7.0000 |
| Cutting Tool Application | Grooving; Facing; Cut-Off; Turning |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.5120 |
| Head Height (mm) | 50.000 |
| Head Length (Decimal Inch) | 2.4803 |
| Primary Workpiece Material | Universal |
| Insert Seat Size | 8.0 |
| Coolant Through | Yes |
