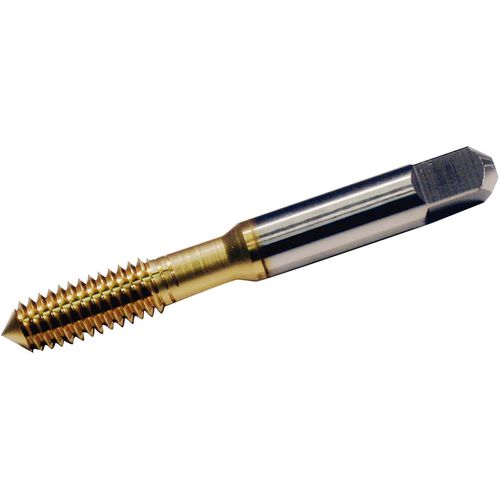

18743 5902 3/8-16NC H7 FE BOTT TICN
Item #: WK302747145
Brand: Widia
Model #: 2747145
| Product Specifications | |
|---|---|
| Tool Type | Forming Tap |
| Threads per Inch (TPI) | 16 |
| Thread Diameter Size (TDZ) | 3/8″ |
| Chamfer | 1P-2P |
| Overall Length (OAL) | 2.94″ |
| Measurement Type | Inch |
| Thread Cutting Part Length (THL) | 3/4″ |
| Style | Bottoming |
| Usable Length (LU) | 1-1/4″ |
| Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 0.381″ |
| Series/List # | TRU-LEDE |
| Thread Standard | NC | UNC |
| Shank Type | Round w/ Drive Square |
| Coating | TiCN |
| Thread Size | 3/8″ - 16 |
| Coolant Supply Property (CSP) | External |
