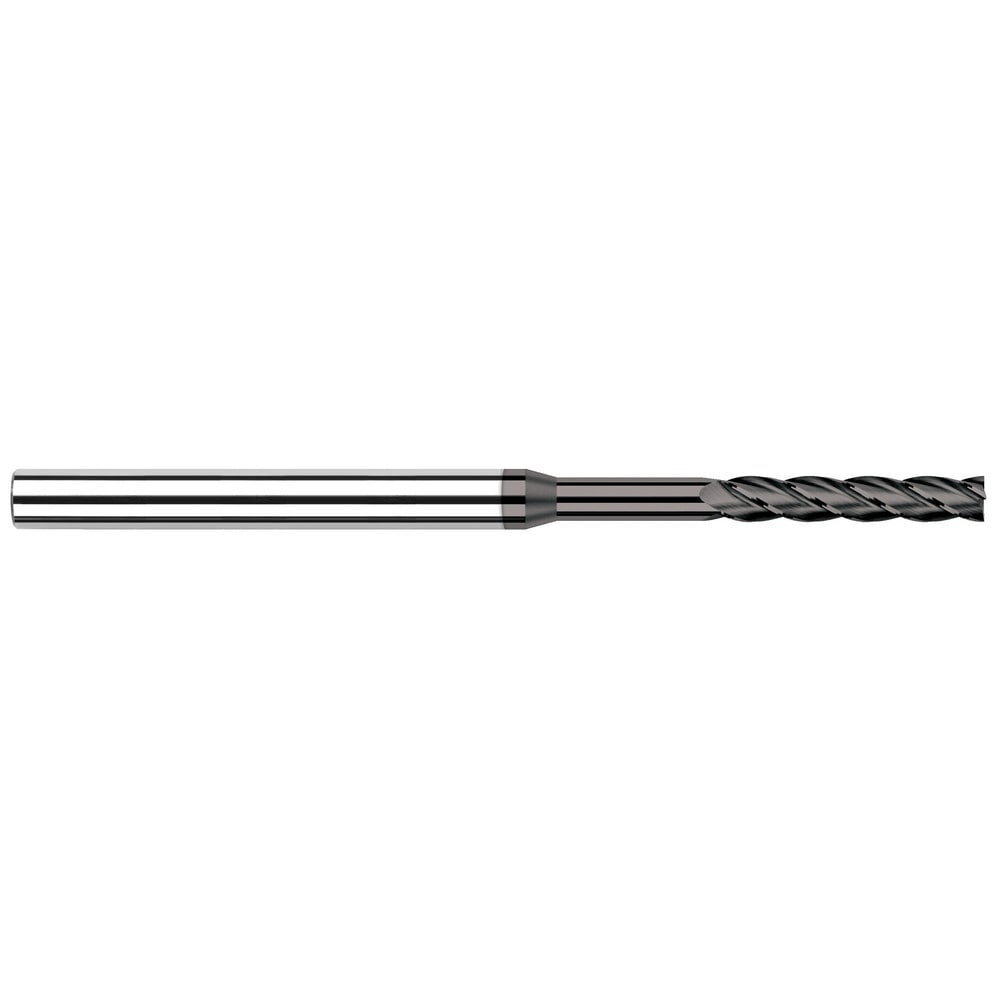

Brand: Harvey Tool / Part #: 746262
Item #: 82847237
Brand: Harvey Tool
Model #: 746262
Product Specifications
| Mill Diameter (Inch) | 1/16 |
| Mill Diameter (Decimal Inch) | 0.0620 |
| Number Of Flutes | 4 |
| Length of Cut (Inch) | 5/16 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 1/8 |
| Finish/Coating | CVD |
| Overall Length (Inch) | 2-1/2 |
| Helix Angle | 30 |
| Chipbreaker | No |
| Extended Reach | Yes |
| Shank Type | Straight-Cylindrical |
| Length of Cut (Decimal Inch) | 0.3120 |
| Material Grade | Solid Carbide |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Overall Length (Decimal Inch) | 2.5000 |
| Flute Direction | Right Hand |
| Flute Type | Helical Flute |
| Reach Length (Inch) | 1/2 |
| Reach Length (Decimal Inch) | 0.5000 |
| Series | Diamond End Mills for Non-Ferrous Materials - CVD Diamond - Square - Long Reach, Long Flute |
