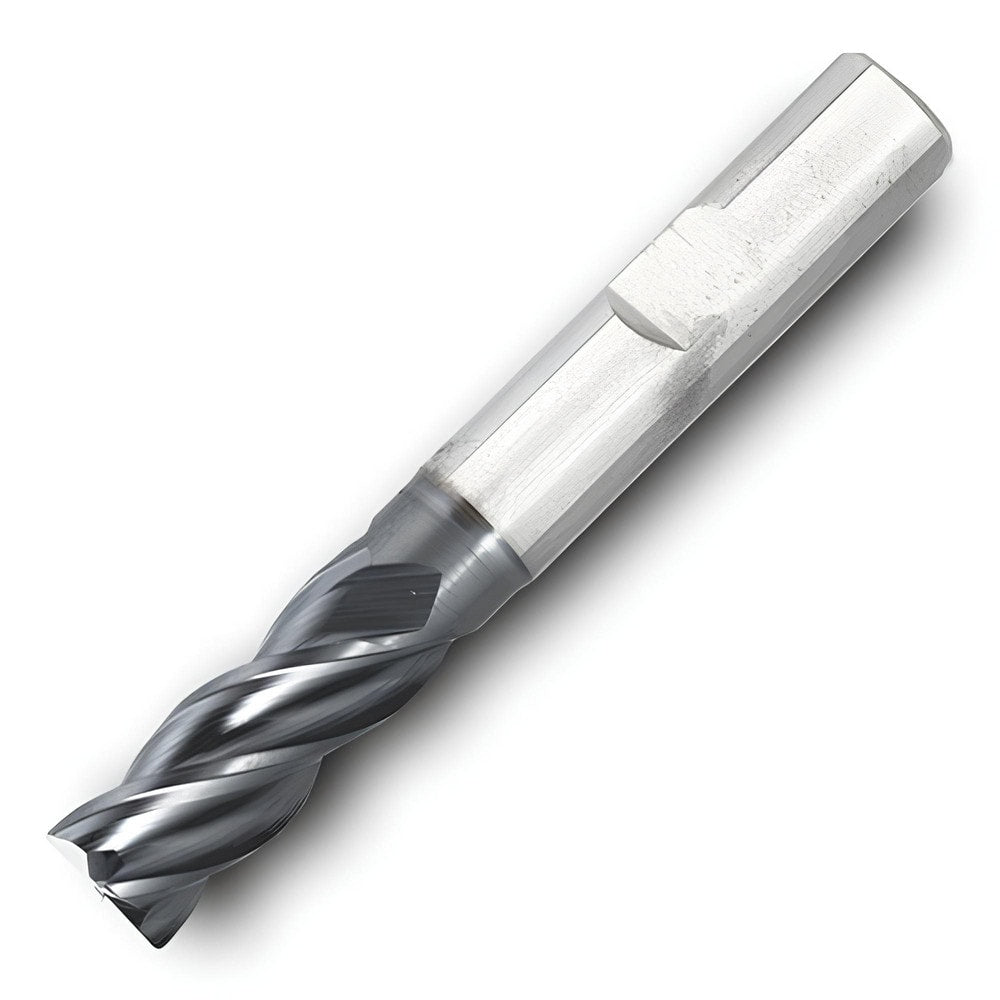

Brand: Ingersoll Cutting Tools / Part #: 2944325
Item #: 99357311
Brand: Ingersoll Cutting Tools
Model #: 2944325
Product Specifications
| Mill Diameter (mm) | 5.00 |
| Corner Radius (mm) | 0.20 |
| Coating/Finish | TiAlN |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 4 |
| Overall Length (mm) | 57.0000 |
| Length of Cut (mm) | 10.0000 |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Flute Direction | Right Hand |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Type | Long |
| Flute Type | Variable |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Centercutting | No |
| Material Removal Type | Finishing |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Minimum Helix Angle | 35 |
| Maximum Helix Angle | 37 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; High Temperature Alloy; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Material Grade | IN2005 |
| Series | 47DRX |
