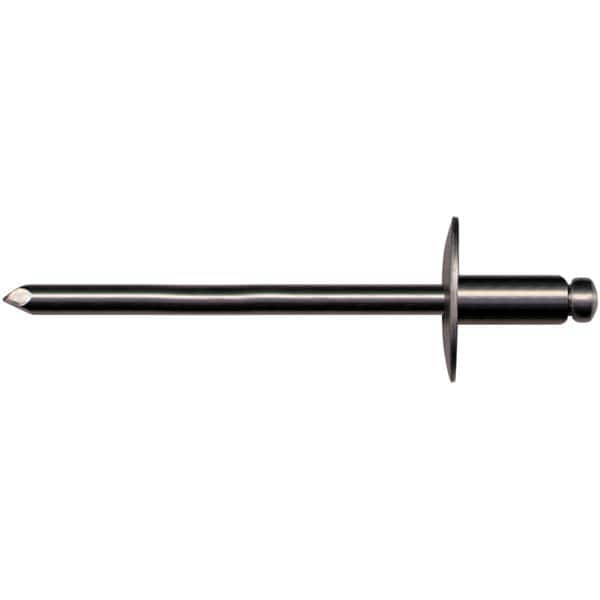

Marson - Blind Rivets Type: Open End Head Type: Large Flange Dome
Item #: 10331528
Brand: Marson
Model #: M70260
Features and Benefits
Open end rivets are used when disassembly is difficult or not required.
Large-flange dome head types have domed, cylindrical heads with large flanges. They are used in oversized holes and to fasten soft or brittle materials to prevent pull-through.
Aluminum has a high strength-to-weight ratio and is wear resistant, nonmagnetic and conductive. It is easier to form and machine than steel and is naturally noncorrosive.
Aluminum has a high strength-to-weight ratio and is wear resistant, nonmagnetic and conductive. It is easier to form and machine than steel and is naturally noncorrosive.
Product Specifications
Blind Rivets; Type: Open End ; Head Type: Large Flange Dome ; Size Code: 612 ; Rivet Material: Aluminum ; Mandrel Material: Aluminum ; Minimum Grip (Decimal Inch): 0.6260
| Type | Open End |
| Head Type | Large Flange Dome |
| Size Code | 612 |
| Rivet Material | Aluminum |
| Mandrel Material | Aluminum |
| Minimum Grip (Decimal Inch) | 0.6260 |
| Maximum Grip (Decimal Inch) | 0.7500 |
| Head Diameter (Decimal Inch) | 0.6150 |
| Minimum Hole Diameter (Decimal Inch) | 0.1920 |
| Maximum Hole Diameter (Decimal Inch) | 0.1960 |
| Mandrel Material Grade | 7178 |
| Color | Silver |
| Head Height (Decimal Inch) | 0.0900 |
