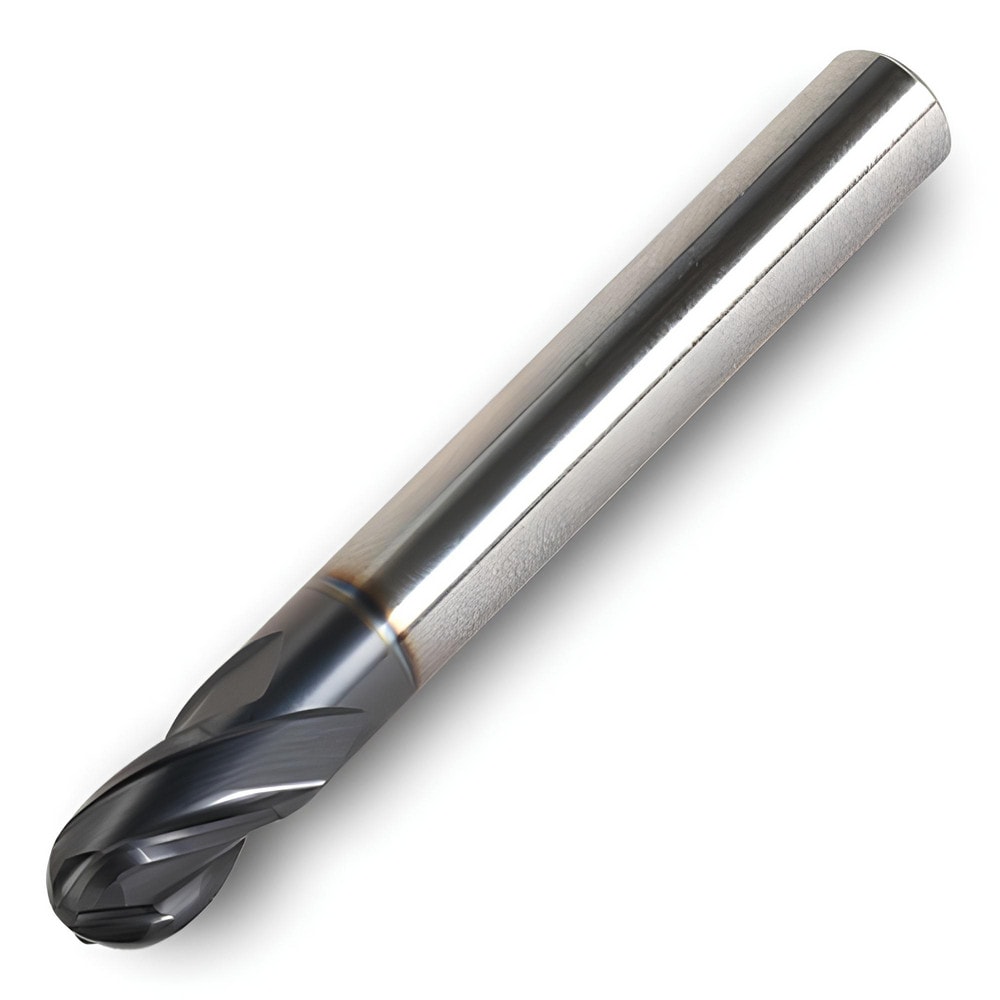

Brand: Ingersoll Cutting Tools / Part #: 3029601
Item #: 94099595
Brand: Ingersoll Cutting Tools
Model #: 3029601
Product Specifications
| Mill Diameter (Inch) | 1/4 |
| Mill Diameter (Decimal Inch) | 0.2500 |
| End Mill Material | Solid Carbide |
| Coating/Finish | TiAlN |
| Chipbreaker | No |
| Number Of Flutes | 2 |
| End Type | Single |
| Extended Reach | No |
| Undercutting | No |
| Length Type | Extra Long |
| Helix Style | Medium |
| Material Removal Type | Finishing |
| Shank Diameter (Inch) | 1/4 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Nose Radius (Decimal Inch) | 0.1250 |
| Overall Length (Inch) | 2-1/2 |
| Overall Length (Decimal Inch) | 2.5000 |
| Maximum Helix Angle | 30 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Secondary Workpiece Material | Hard Material; Non-Ferrous Metal; Super Alloys & Titanium |
| Secondary Workpiece Material Code | H; M; N |
| Material Grade | IN2005 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | 45B_RB |
| Flute Type | Medium |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.3130 |
