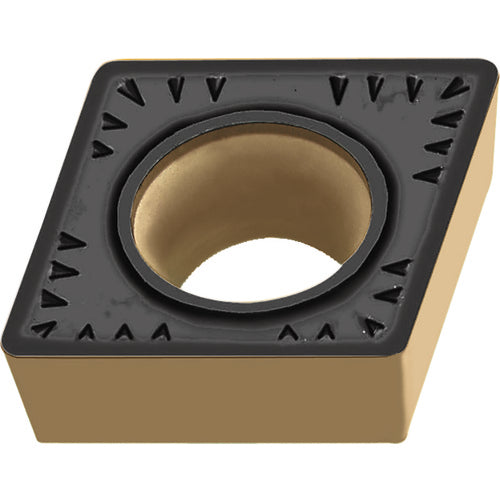

CCMT 120408 PM5 WPP30, 0.8 mm Corner Radius, 4.76 mm Thick, 0.5 mm Inscribed Circle, TiCN+Al2O3+(TiN), 80° Rhombic, Turning Indexable Insert
Item #: WC105199661
Brand: Walter
Model #: 5199661
| Product Specifications | |
|---|---|
| Applicable Material | Steel |
| Tool Type | Turning Insert |
| Insert Style | CCMT |
| Fixing Hole Diameter (D1) | 5.5 mm |
| Corner Radius (RE) | 0.8 mm |
| Clearance Angle Major (AN) | 7 Degrees |
| Insert Size | 120408 |
| Number of Cutting Edges | 2 |
| Cutting Edge Length (L) | 12.9 mm |
| Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 4.76 mm |
| Chip Breaker Type | PM5 |
| Inscribed Circle Diameter (IC) | 0.5 mm |
| Measurement Type | Metric |
| Coating | TiCN+Al2O3+(TiN) |
| Shape | 80° Rhombic |
| Grade | WPP30 |
| Series/List # | CCMT-WPP30 |
