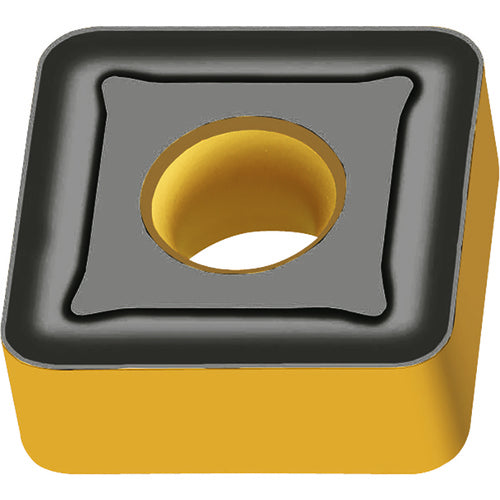

SNMG 120412 NM5 WAK30, 1.2 mm Corner Radius, 4.76 mm Thick, 0.5 mm Inscribed Circle, TiCN+Al2O3+(TiN), Square, Turning Indexable Insert
Item #: WC105118116
Brand: Walter
Model #: 5118116
| Product Specifications | |
|---|---|
| Applicable Material | Cast Iron |
| Tool Type | Turning Insert |
| Insert Style | SNMG |
| Fixing Hole Diameter (D1) | 5.16 mm |
| Corner Radius (RE) | 1.2 mm |
| Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 120412 |
| Number of Cutting Edges | 8 |
| Cutting Edge Length (L) | 12.7 mm |
| Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 4.76 mm |
| Chip Breaker Type | NM5 |
| Inscribed Circle Diameter (IC) | 0.5 mm |
| Measurement Type | Metric |
| Coating | TiCN+Al2O3+(TiN) |
| Shape | Square |
| Grade | WAK30 |
| Series/List # | SNMG-WAK30 |
