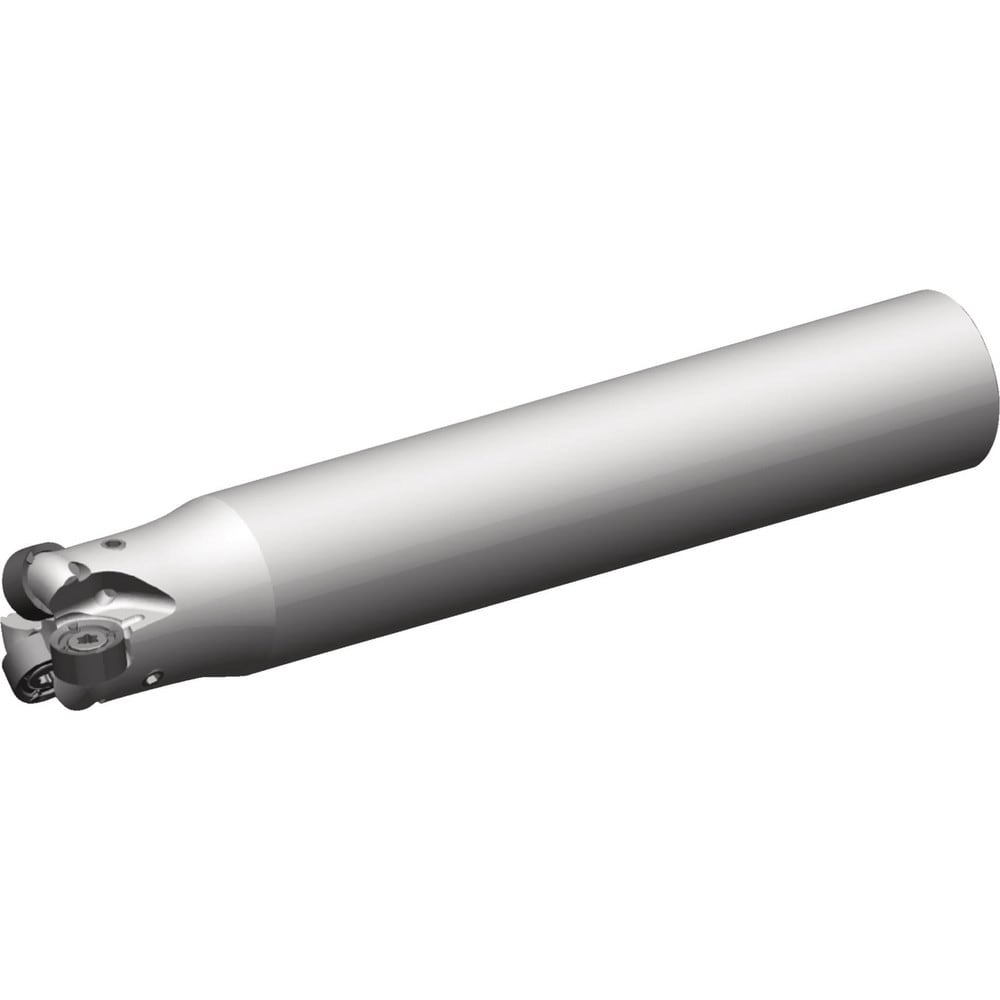

Brand: Widia / Part #: 5210302
Item #: 99734956
Brand: Widia
Model #: 5210302
Product Specifications
| Minimum Cutting Diameter (mm) | 18.00 |
| Maximum Cutting Diameter (mm) | 28.00 |
| Maximum Depth of Cut (mm) | 4.96 |
| Toolholder Style | M200 |
| Shank Type | Cylindrical |
| Shank Diameter | 0.9840 |
| Maximum Ramping Angle | 0.55 |
| Compatible Insert Style | RN_J |
| Insert Holding Method | Screw |
| Compatible Insert Size Code | 10T3M0 |
| Number Of Cutter Inserts | 3 |
| Overall Length (mm) | 200.0000 |
| Series | M200 |
| Flute Type | Straight |
| Maximum Rpm | 51600.000 |
| Shank Length (mm) | 160.000 |
| Functional Length (mm) | 200.00 |
| Head Length (mm) | 40.00 |
| Insert Diameter (mm) | 10.000 |
| Tool Application | Pocketing; Milling; Slotting |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Hard Material; Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Number Of Flutes | 3 |
| Coolant Through | Yes |
