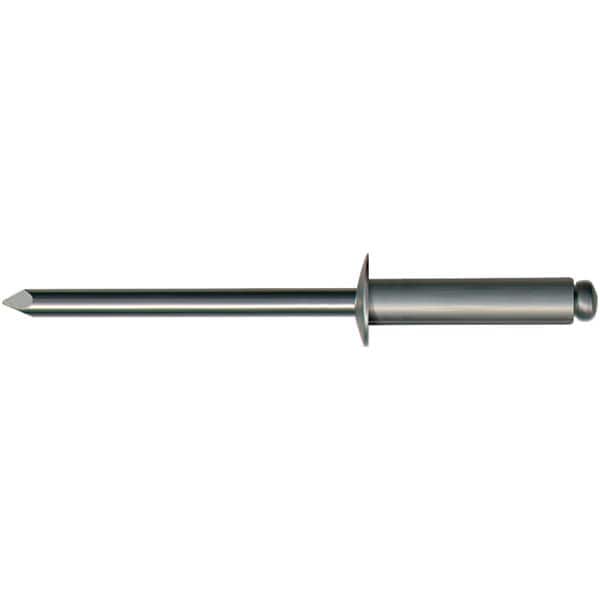

Marson - Blind Rivets Type: Open End Head Type: Countersunk
Item #: 10332120
Brand: Marson
Model #: M56318
Features and Benefits
Open end rivets are used when disassembly is difficult or not required.
Countersunk head rivets lie flush against the workpiece material and have large bearing surfaces.
Aluminum has a high strength-to-weight ratio and is wear resistant, nonmagnetic and conductive. It is easier to form and machine than steel and is naturally noncorrosive.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
Product Specifications
Blind Rivets; Type: Open End ; Head Type: Countersunk ; Size Code: 43-44 ; Rivet Material: Aluminum ; Mandrel Material: Steel ; Minimum Grip (Decimal Inch): 0.0930
| Type | Open End |
| Head Type | Countersunk |
| Size Code | 43-44 |
| Rivet Material | Aluminum |
| Mandrel Material | Steel |
| Minimum Grip (Decimal Inch) | 0.0930 |
| Maximum Grip (Decimal Inch) | 0.2500 |
| Head Diameter (Decimal Inch) | 0.2000 |
| Minimum Hole Diameter (Decimal Inch) | 0.1290 |
| Maximum Hole Diameter (Decimal Inch) | 0.1330 |
| Maximum Hole Diameter (mm) | 0.133 |
| Countersunk Head Angle | 120.00 |
| Drill Size (Wire) | #30 |
| Body Diameter (Decimal Inch) | 0.1250 |
| Shear Strength (Lb.) | 155 |
| Fastener Standard | IFI Grade 19 |
