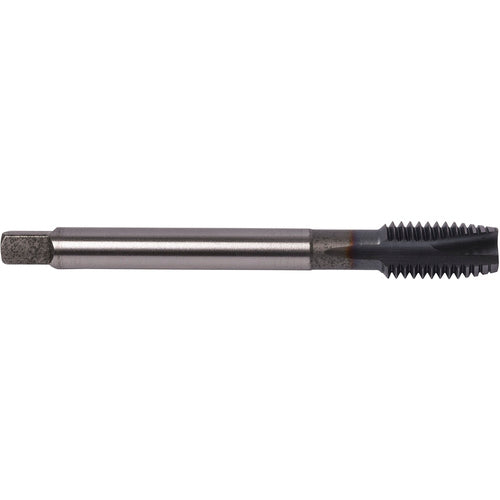

3/4″- 16 4 Flute Union Butterfield HSS-PM TiCN Applix UNF Machine Tap DIN/ANSI E-code # 1672AP3/4X16
Item #: UB5946204856
Brand: Union Butterfield
Model #: 6204856
| Product Specifications | |
|---|---|
| Thread Standard | NF |
| Tool Type | Machine Tap |
| Thread Size | 3/4″ - 16 |
| Applicable Material | Steel | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Thread Diameter Size (TDZ) | 3/4″ |
| Connection Diameter Machine Side (DCONMS) | 0.59″ |
| Threads per Inch (TPI) | 16 |
| Thread Cutting Part Length (THL) | 0.984″ |
| Thread Tolerance Class (TCTR) | 2B |
| End Shape | Spiral Point |
| Overall Length (OAL) | 4.331″ |
| Cutting Direction (HAND) | Right Hand |
| Coating | TiCN |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 |
| Length Group | 3xD |
| Cutting Edge Material | HSSCoPM |
| Square Size | 0.442″ |
| Standard | DIN|ANSI |
| Measurement Type | Fractional |
