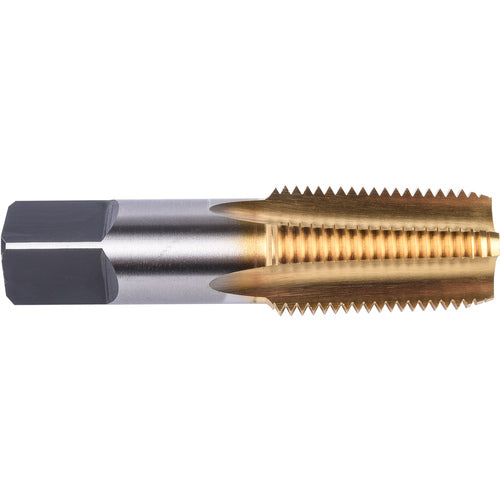

1/4″- 18 4 Flute Union Butterfield HSS TiN NPTF Pipe Tap ANSI E-code # TN15431/4
Item #: UB171060531
Brand: Union Butterfield
Model #: 6007609
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 1/4″ |
| Cutting Direction (HAND) | Right Hand |
| Threads per Inch (TPI) | 18 |
| Applicable Material | Cast Iron|Copper|Hardened Steel|Steel |
| Thread Standard | NPTF |
| Coating | TiN |
| Flute Helix Angle (FHA) | 0 Degrees |
| Cutting Edge Material | HSS |
| Flute Count (NOF) | 4 |
| Measurement Type | Pipe |
| Overall Length (OAL) | 2-7/16″ |
| Standard | ANSI |
| Thread Cutting Part Length (THL) | 1-1/16″ |
| Length Group | 1.5D |
| Connection Diameter Machine Side (DCONMS) | 0.563″ |
| Square Size | 0.421″ |
| Flute Type | Straight |
| Thread Size | 1/4″ - 18 |
| Coolant Supply Property (CSP) | External |
