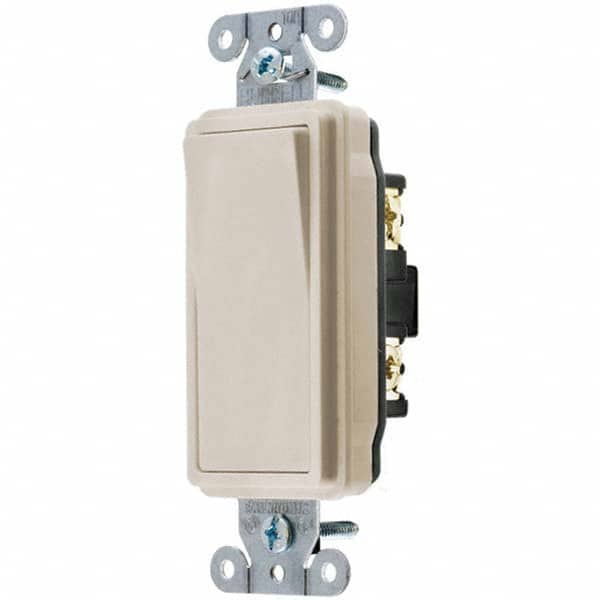

Hubbell Wiring Device-Kellems - Rocker Switches Switch Type: Medium Duty Switch Sequence: Off-On
Item #: 98652332
Brand: Hubbell Wiring Device-Kellems
Model #: DS115LA
Product Specifications
Rocker Switches; Switch Type: Medium Duty ; Switch Sequence: Off-On ; Contact Form: SPST ; Operation Type: Maintained (MA) ; Terminal Type: Wire Leads ; Maximum Amperage at 125 Volts: 15
| Switch Type | Medium Duty |
| Switch Sequence | Off-On |
| Contact Form | SPST |
| Operation Type | Maintained (MA) |
| Terminal Type | Wire Leads |
| Maximum Amperage at 125 Volts | 15 |
| Maximum Amperage at 250 Volts | 15 |
| Voltage | 120/277 VAC |
| Mounting Type | Box Mount |
| Contact Plating | Silver Alloy |
| Switch Shape | Rectangle |
| Color | Light Almond |
| Switch Housing Material | Thermoplastic |
| Maximum Operating Temperature (F) | 158 |
| Minimum Operating Temperature (F) | -40 |
| Mounting Hole Length (Decimal Inch) | 3 |
| Mounting Hole Width (mm) | 33-1/2 |
| Standards Met | UL Listed; CSA Certified |
