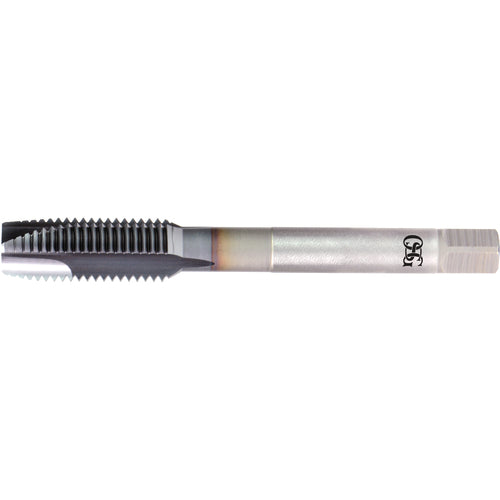

1″ - 14 UNS H6 3S/P PLG
Item #: TP531651507408
Brand: OSG USA, Inc.
Model #: 1651507408
| Product Specifications | |
|---|---|
| Thread Standard | UNS |
| Flute Count (NOF) | 3 |
| Thread Size | 1″ - 14 |
| Cutting Edge Material | VC10 |
| Thread Diameter Size (TDZ) | 1″ |
| Tool Type | Spiral Point Tap |
| Threads per Inch (TPI) | 14 |
| Applicable Material | Steel | Aluminum / Non-Ferrous Materials |
| Thread Tolerance Class (TCTR) | H6 |
| Connection Diameter Machine Side (DCONMS) | 0.8″ |
| Usable Length (LU) | 2.09″ |
| Thread Cutting Part Length (THL) | 1-1/2″ |
| Overall Length (OAL) | 5.51″ |
| End Shape | Spiral Point |
| Chamfer | 3.5P-4.5P |
| Measurement Type | Inch |
| Coating | V Coating |
| Series/List # | 16515 |
