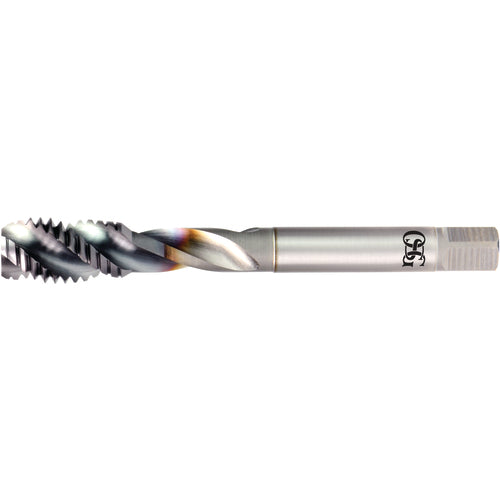

M18X1.25 D6 4FX 2.5P ATAP
Item #: TP531650013508
Brand: OSG USA, Inc.
Model #: 1650013508
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M18 |
| Flute Helix Angle (FHA) | Variable |
| Thread Pitch (TP) | 1.25 mm |
| Cutting Edge Material | VC-10 |
| Thread Standard | Metric |
| Thread Tolerance Class (TCTR) | D6 |
| Overall Length (OAL) | 110 mm |
| Tool Type | Spiral Flute Tap |
| Thread Cutting Part Length (THL) | 16 mm |
| Chamfer | 2.5P |
| Usable Length (LU) | 55 mm |
| Coating | V Coating |
| Connection Diameter Machine Side (DCONMS) | 13.76 mm |
| Flute Type | Spiral |
| Flute Count (NOF) | 4 |
| Measurement Type | Metric |
