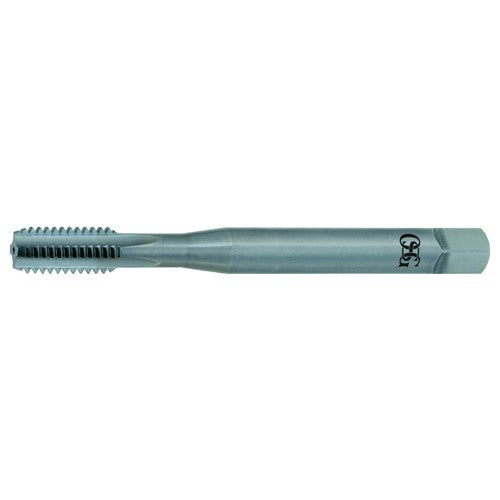

M10 1.5 6H 4FL Carbide Bottoming Tap
Item #: TP441006102000
Brand: OSG USA, Inc.
Model #: 1006102000
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M10 |
| Cutting Edge Material | Carbide |
| Thread Pitch (TP) | 1.5 mm |
| Thread Tolerance Class (TCTR) | 6H |
| Thread Standard | Metric |
| Chamfer | 1.5P-2P |
| Overall Length (OAL) | 74 mm |
| Flute Type | Straight |
| Thread Cutting Part Length (THL) | 18 mm |
| Style | Bottoming |
| Usable Length (LU) | 32 mm |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 9.67 mm |
| Series/List # | 10061 |
| Flute Count (NOF) | 4 |
| Thread Size | M10 × 1.5 |
| Applicable Material | Cast Iron | Aluminum / Non-Ferrous Materials |
