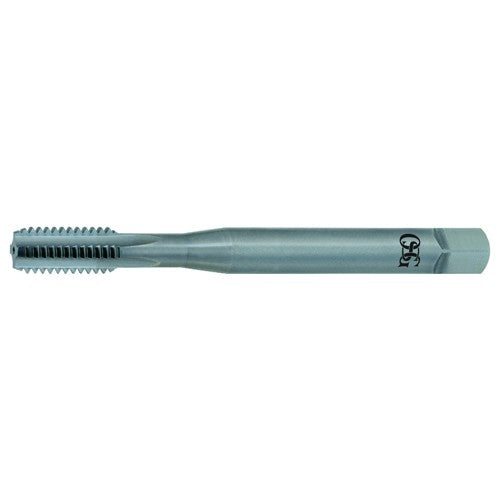

M3 0.5 6H 3FL Carbide Plug Tap
Item #: TP441006100100
Brand: OSG USA, Inc.
Model #: 1006100100
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M3 |
| Cutting Edge Material | Carbide |
| Thread Pitch (TP) | 0.5 mm |
| Thread Tolerance Class (TCTR) | 6H |
| Thread Standard | Metric |
| Tool Type | Hand Tap |
| Overall Length (OAL) | 49 mm |
| Chamfer | 4P-4.5P |
| Thread Cutting Part Length (THL) | 7 mm |
| Style | Plug |
| Usable Length (LU) | 17 mm |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 3.58 mm |
| Series/List # | 10061 |
| Flute Count (NOF) | 3 |
| Thread Size | M3 × 0.5 |
| Applicable Material | Cast Iron | Aluminum / Non-Ferrous Materials |
