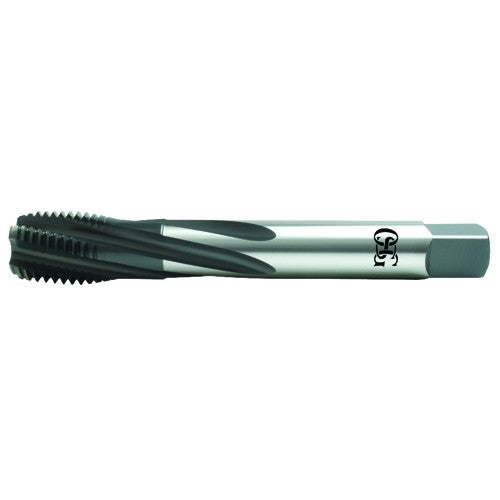

1302400201 9/16-18 UNF 2B
Item #: TP221302400201
Brand: OSG USA, Inc.
Model #: 1302400201
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 9/16″ |
| Thread Tolerance Class (TCTR) | 2B |
| Threads per Inch (TPI) | 18 |
| Standard | DIN |
| Thread Standard | NF |
| Tool Type | Spiral Flute Tap |
| Overall Length (OAL) | 100 mm |
| Chamfer | 2.5P |
| Thread Cutting Part Length (THL) | 1-21/32″ |
| Coating | Black Oxide |
| Usable Length (LU) | 1-1/8″ |
| Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 0.429″ |
| End Shape | Chamfer |
| Flute Count (NOF) | 4 |
| Measurement Type | Inch |
| Cutting Edge Material | HSSCo |
