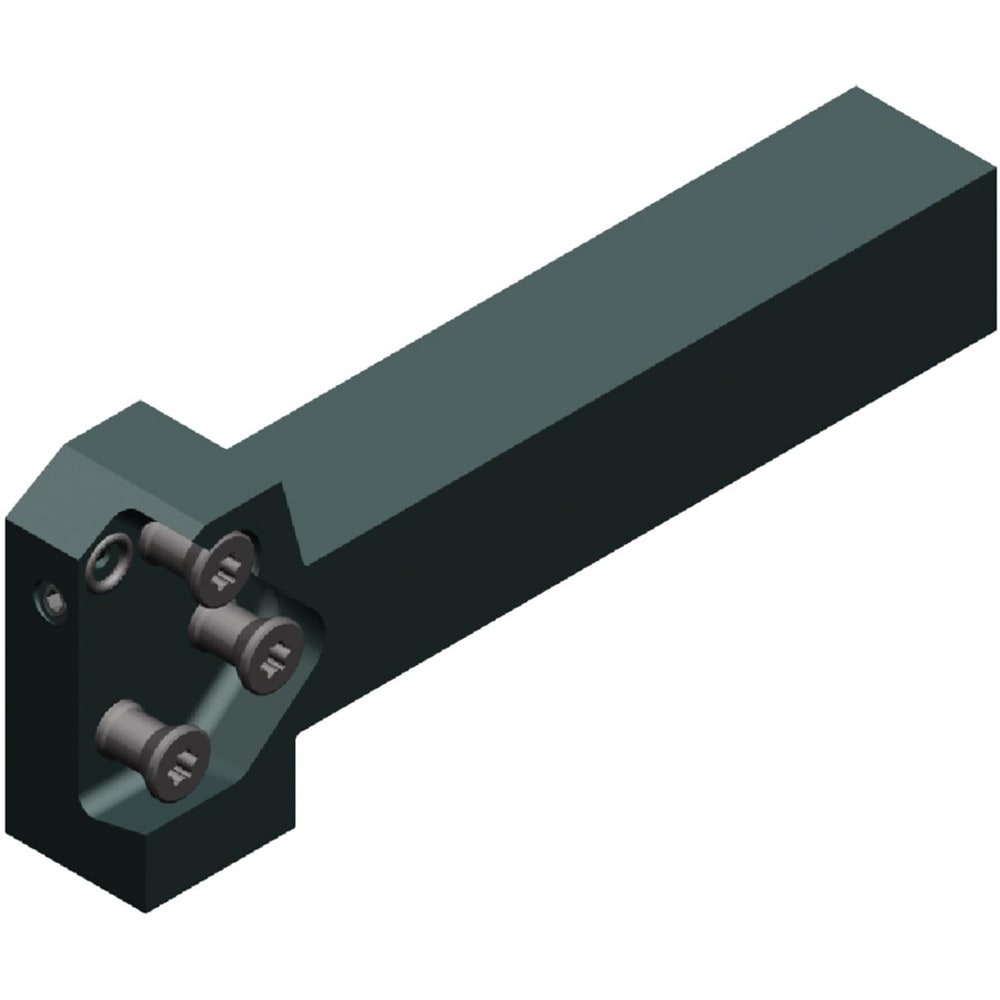

Brand: Widia / Part #: 6499271
Item #: 98294390
Brand: Widia
Model #: 6499271
Product Specifications
| Internal or External | External |
| Maximum Depth of Cut (Decimal Inch) | 1.2598 |
| Hand of Holder | Right Hand |
| Maximum Groove Width (Decimal Inch) | 0.3150 |
| Minimum Groove Width (Decimal Inch) | 0.2360 |
| Toolholder Style | WGCMS |
| Tool Material | Steel |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | 65 |
| Shank Height (Inch) | 1 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Length (Decimal Inch) | 4.8970 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Inch) | 1 |
| Series | WGC |
| Overall Length (Decimal Inch) | 6.0000 |
| Cutting Tool Application | Grooving; Facing; Cut-Off; Turning |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5280 |
| Head Height (mm) | 53.090 |
| Head Length (Decimal Inch) | 1.1031 |
| Primary Workpiece Material | Universal |
| Insert Seat Size | 65.0 |
| Coolant Through | Yes |
