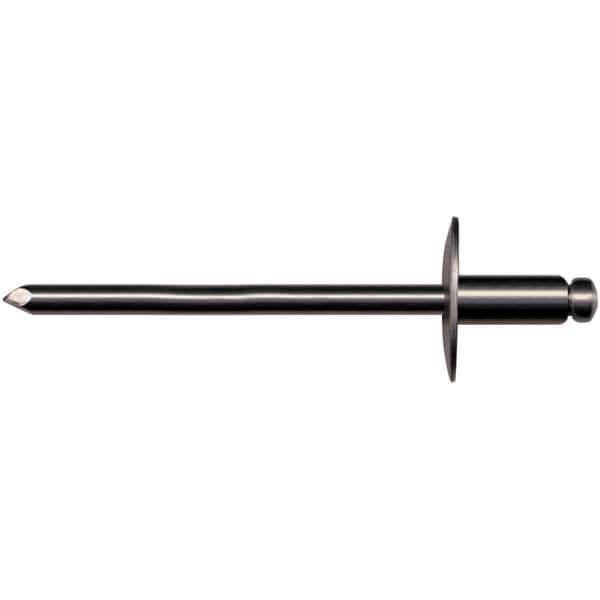

Marson - Blind Rivets Type: Open End Head Type: Large Flange Dome
Item #: 10331593
Brand: Marson
Model #: M78011
Features and Benefits
Open end rivets are used when disassembly is difficult or not required.
Large-flange dome head types have domed, cylindrical heads with large flanges. They are used in oversized holes and to fasten soft or brittle materials to prevent pull-through.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
Product Specifications
Blind Rivets; Type: Open End ; Head Type: Large Flange Dome ; Size Code: 86 ; Rivet Material: Steel ; Mandrel Material: Steel ; Minimum Grip (Decimal Inch): 0.2510
| Type | Open End |
| Head Type | Large Flange Dome |
| Size Code | 86 |
| Rivet Material | Steel |
| Mandrel Material | Steel |
| Minimum Grip (Decimal Inch) | 0.2510 |
| Maximum Grip (Decimal Inch) | 0.3750 |
| Head Diameter (Decimal Inch) | 0.6250 |
| Minimum Hole Diameter (Decimal Inch) | 0.2570 |
| Maximum Hole Diameter (Decimal Inch) | 0.2610 |
| Rivet Material Grade | 5052 |
| Mandrel Material Grade | Carbon Steel |
| Drill Size (Letter) | F |
| Body Diameter (Inch) | 0.25 |
| Color | Silver |
| Shear Strength (Lb.) | 1000 |
| Head Height (Decimal Inch) | 0.0900 |
