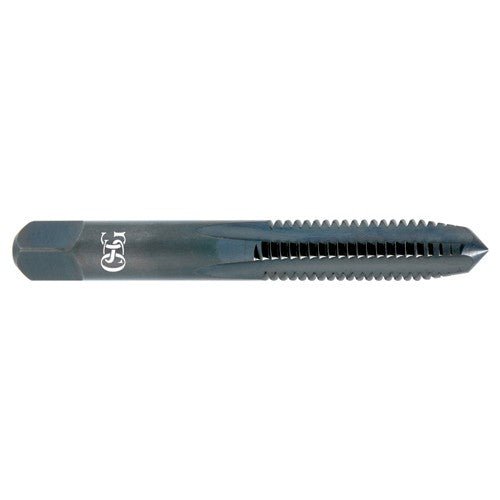

8-32 H1 4FL HSS Straight Flute Plug Tap-TiCN
Item #: TP101004308
Brand: OSG USA, Inc.
Model #: 1004308
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | #8 |
| Tool Type | Hand Tap |
| Threads per Inch (TPI) | 32 |
| Chamfer | 4P-4.5P |
| Thread Standard | NC |
| Coating | TiCN |
| Overall Length (OAL) | 2-1/8″ |
| Flute Type | Straight |
| Thread Cutting Part Length (THL) | 3/4″ |
| End Shape | Chamfer |
| Usable Length (LU) | 0.933″ |
| Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 0.167″ |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 |
| Measurement Type | Wire Gage |
| Applicable Material | Steel | Cast Iron | Aluminum / Non-Ferrous Materials |
| Series/List # | 102 |
| Cutting Edge Material | HSS |
| Thread Size | #8 - 32 |
| Thread Tolerance Class (TCTR) | H1 |
