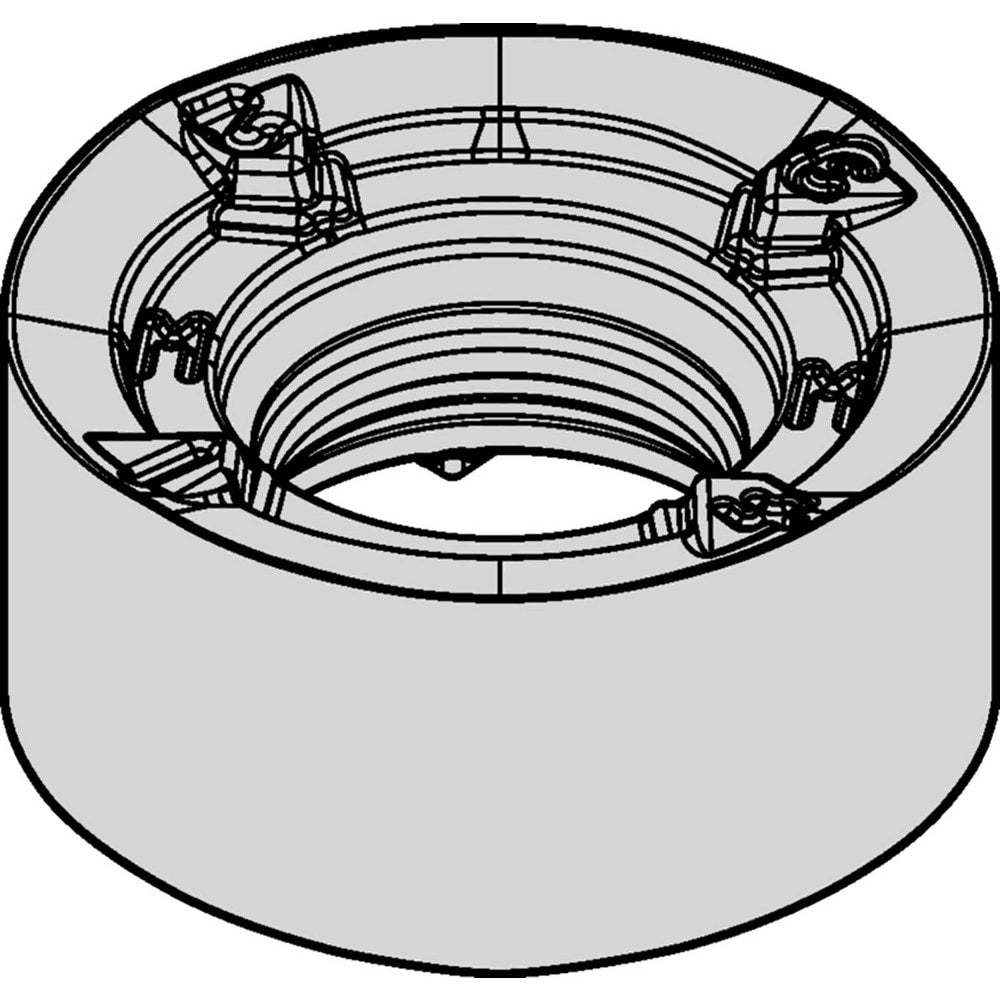

Brand: Widia / Part #: 5542327
Item #: 94113222
Brand: Widia
Model #: 5542327
Product Specifications
| Insert Style | RNPJ |
| Insert Size Code | 10T3 |
| Insert Size | 10 |
| Insert Material | Carbide |
| Manufacturer Grade | WP40PM |
| Inscribed Circle (Decimal Inch) | 0.3937 |
| Inscribed Circle (mm) | 10.00 |
| Corner Radius (Decimal Inch) | 0.1969 |
| Corner Radius (mm) | 5.00 |
| Insert Hand | Neutral |
| Relief Angle | 0.000 |
| Series | M200 |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1831 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Number Of Cutting Edges | 2 |
| Insert Shape | Round |
| Rake | Negative |
| Primary Workpiece Material | Stainless Steel; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | RNPJ10T3M0SMM |
| Iso Code | RNPJ10T3M0SMM |
| Manufacturers Catalog Number | RNPJ10T3M0SMM |
| Cutter Series Compatibility | M200 RN10 CT |
| Chip Breaker | MM |
| Cutting Direction | Neutral |
| Material Application | High-Temperature Alloy; Stainless Steel; Steel |
| Shape | Round |
| Length of Cut (mm) | 5.0000 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Coating/Finish | AlCrN; TiAlN |
| Length | 10.00 |
| Width (Decimal Inch - 4 Decimals) | 0.3937 |
| Width (Mm - 2 Decimals) | 10.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1548 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.3937 |
