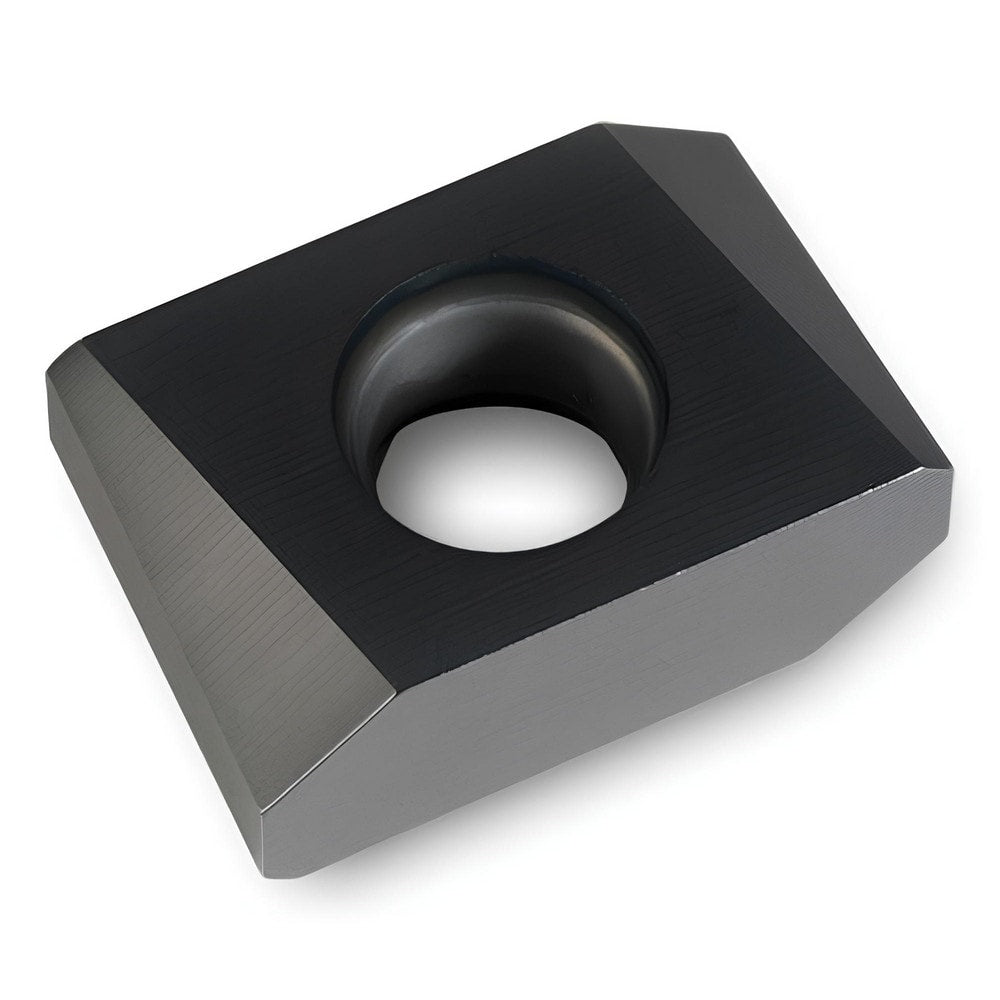

Brand: Ingersoll Cutting Tools / Part #: 2907255
Item #: 47987797
Brand: Ingersoll Cutting Tools
Model #: 2907255
Product Specifications
| Insert Style | LSE |
| Insert Size Code | 324 |
| Insert Material | Carbide |
| Manufacturer Grade | IN4040 |
| Length (Inch) | 5/8 |
| Thickness (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.4100 |
| Insert Hand | Right Hand |
| Series | LSE |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.6250 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Rectangle |
| Rake | Positive |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Ansi Code | LSE324R045-S A |
| Manufacturers Catalog Number | LSE324R045-S A IN4040 |
| Cutter Series Compatibility | 19N1A; 9N6A |
| Chip Breaker | S |
| Cutting Direction | Right Hand |
| Shape | Rectangle |
| Length of Cut (mm) | 15.8800 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | AlCrO; TiAlN |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.4100 |
| Multi-Use Tool | Yes |
