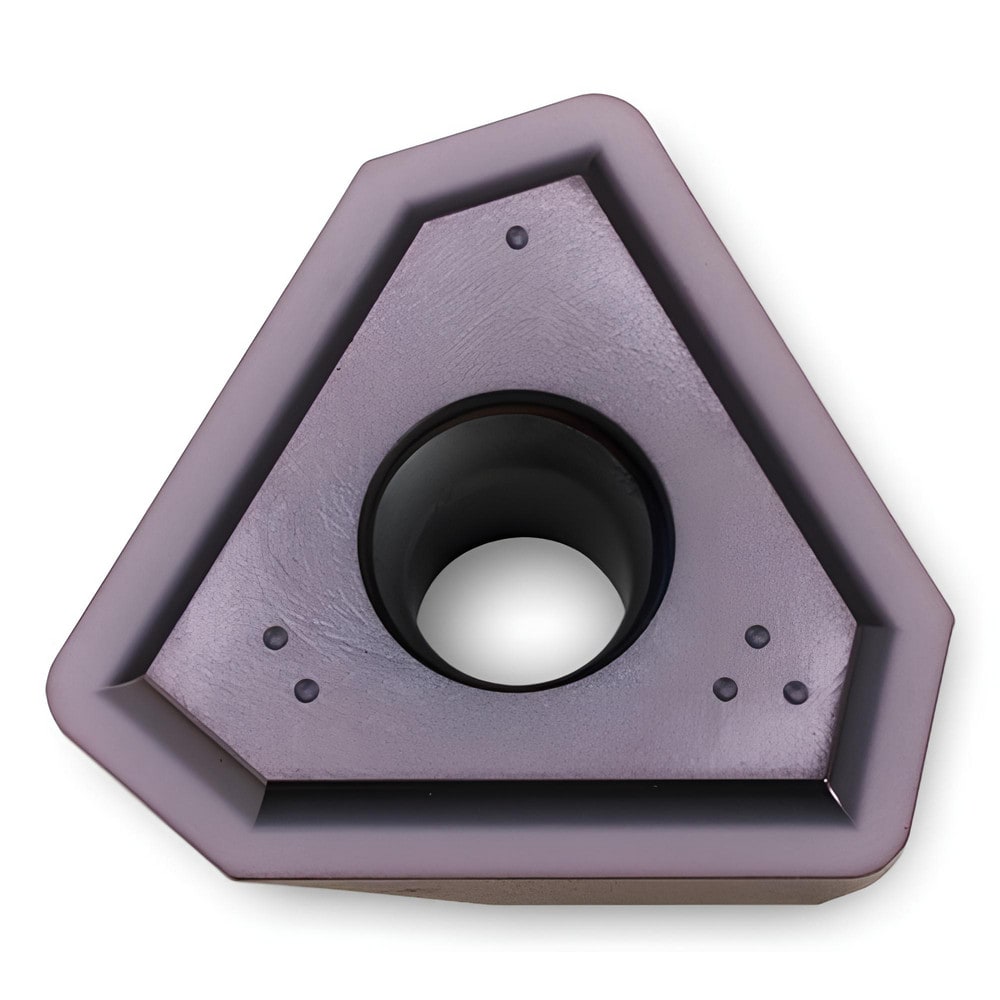

Brand: Ingersoll Cutting Tools / Part #: 4800856
Item #: 95146858
Brand: Ingersoll Cutting Tools
Model #: 4800856
Product Specifications
| Insert Style | TPMX |
| Insert Size Code | 280716 |
| Insert Material | Carbide |
| Manufacturer Grade | IN1510 |
| Thickness (mm) | 7.4900 |
| Inscribed Circle (Decimal Inch) | 0.6690 |
| Inscribed Circle (mm) | 16.99 |
| Cutting Direction | Right Hand |
| Corner Radius (Inch) | 1/16 |
| Chipbreaker | G |
| Series | TPMX |
| Coating Process | PVD |
| Shape | Triangle |
| Number Of Cutting Edges | 3 |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Manufacturers Catalog Number | TPMX280716R-G IN1510 |
| Drill Style | TBTA |
| Insert Size | 28 |
| Coating Classification | PVD |
| Included Angle Degree | 60 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2950 |
| Coating/Finish | TiCN; TiN |
