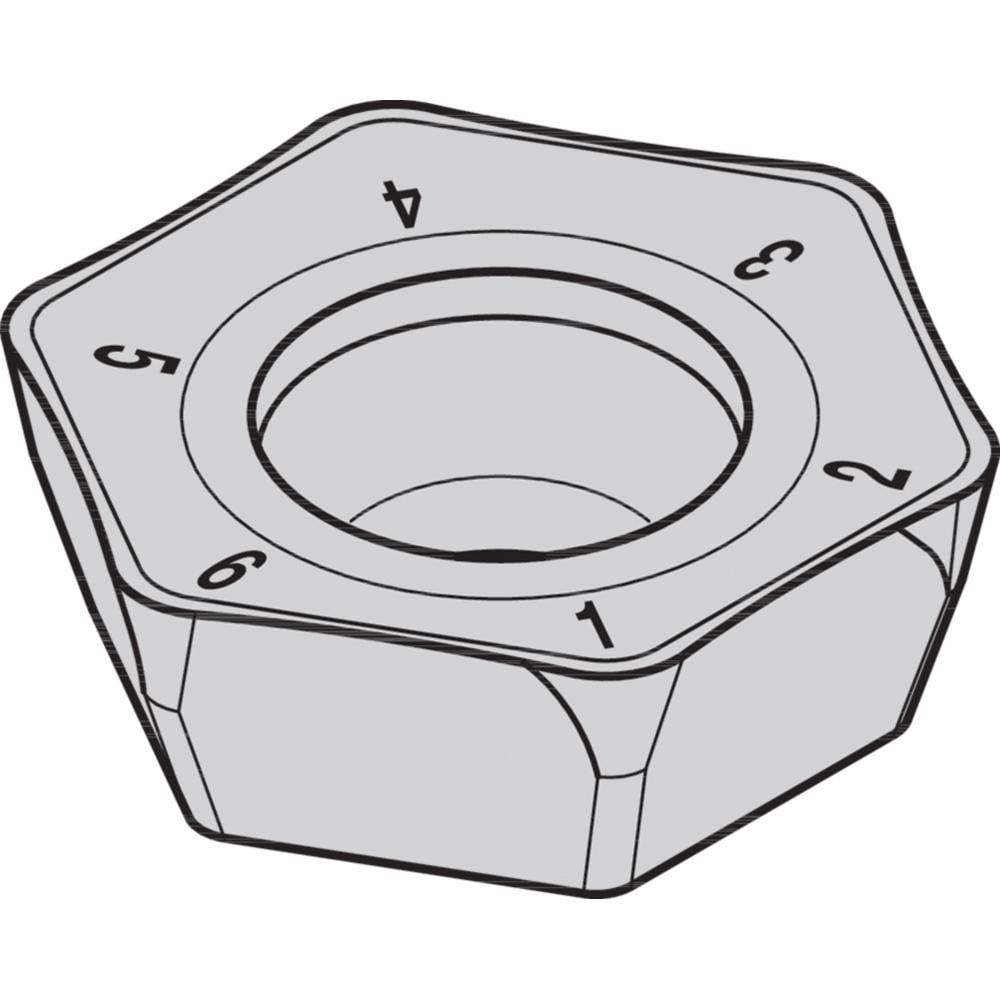

Brand: Widia / Part #: 2288106
Item #: 94102944
Brand: Widia
Model #: 2288106
Product Specifications
| Insert Style | HPGT |
| Insert Size Code | 06T3 |
| Insert Size | 22 |
| Insert Material | Carbide |
| Manufacturer Grade | THM |
| Inscribed Circle (Decimal Inch) | 0.4332 |
| Inscribed Circle (mm) | 11.00 |
| Corner Radius (Decimal Inch) | 0.0352 |
| Insert Hand | Right Hand |
| Relief Angle | 13.000 |
| Series | M640 |
| Coating Process | Uncoated |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Maximum Depth of Cut (Decimal Inch) | 0.2166 |
| Number Of Cutting Edges | 6 |
| Insert Shape | Hexagon |
| Rake | Positive |
| Secondary Workpiece Material | Non-Ferrous Metal; Cast Iron |
| Secondary Workpiece Material Code | K; N |
| Ansi Code | HPGT225DZFRLDAL |
| Iso Code | HPGT06T3DZFRLDAL |
| Manufacturers Catalog Number | HPGT225DZFRLDAL |
| Cutter Series Compatibility | M640 HP06T3 IN |
| Chip Breaker | LD |
| Cutting Direction | Right Hand |
| Material Application | High-Temperature Alloy; Stainless Steel; Steel |
| Shape | Hexagon |
| Insert Holding Method | Screw |
| Thickness (mm) | 4.0000 |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Single |
| Coating/Finish | Uncoated |
| Included Angle Degree | 120 |
| Length | 11.00 |
| Width (Decimal Inch - 4 Decimals) | 0.4332 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1575 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.4332 |
