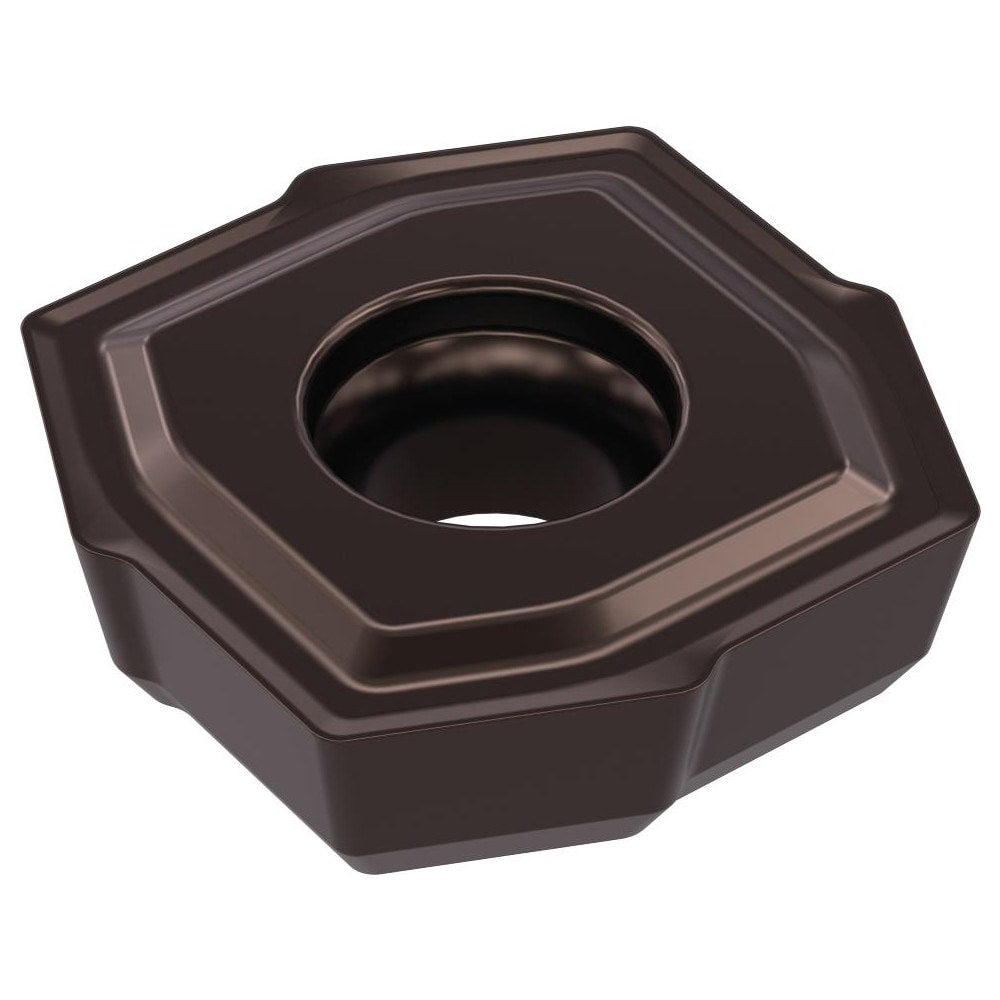

Brand: Widia / Part #: 6858611
Item #: 09703240
Brand: Widia
Model #: 6858611
Product Specifications
| Insert Style | TCF |
| Insert Size Code | 090305 |
| Insert Material | Carbide |
| Manufacturer Grade | WU20PH |
| Inscribed Circle (Decimal Inch) | 0.3760 |
| Cutting Direction | Neutral |
| Corner Radius (Decimal Inch) | 0.0190 |
| Chipbreaker | DU |
| Series | TCF |
| Coating Process | PVD |
| Shape | Irregular |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Hole Diameter (Inch) | 7/64 |
| Number Of Cutting Edges | 4 |
| Relief Angle | 11.000 |
| Rake | Positive |
| Primary Workpiece Material | Universal |
| Secondary Workpiece Material | Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Secondary Workpiece Material Code | P; S; K; M |
| Ansi Code | TCF090305DCDU |
| Iso Code | TCF090305DCDU |
| Drill Style | TCF |
| Insert Size | 09 |
| Coating Classification | PVD |
| Width (Decimal Inch - 4 Decimals) | 0.3071 |
| Length (Decimal Inch - 4 Decimals) | 0.3071 |
| Included Angle Degree | 90 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1181 |
| Coating/Finish | TiALN |
