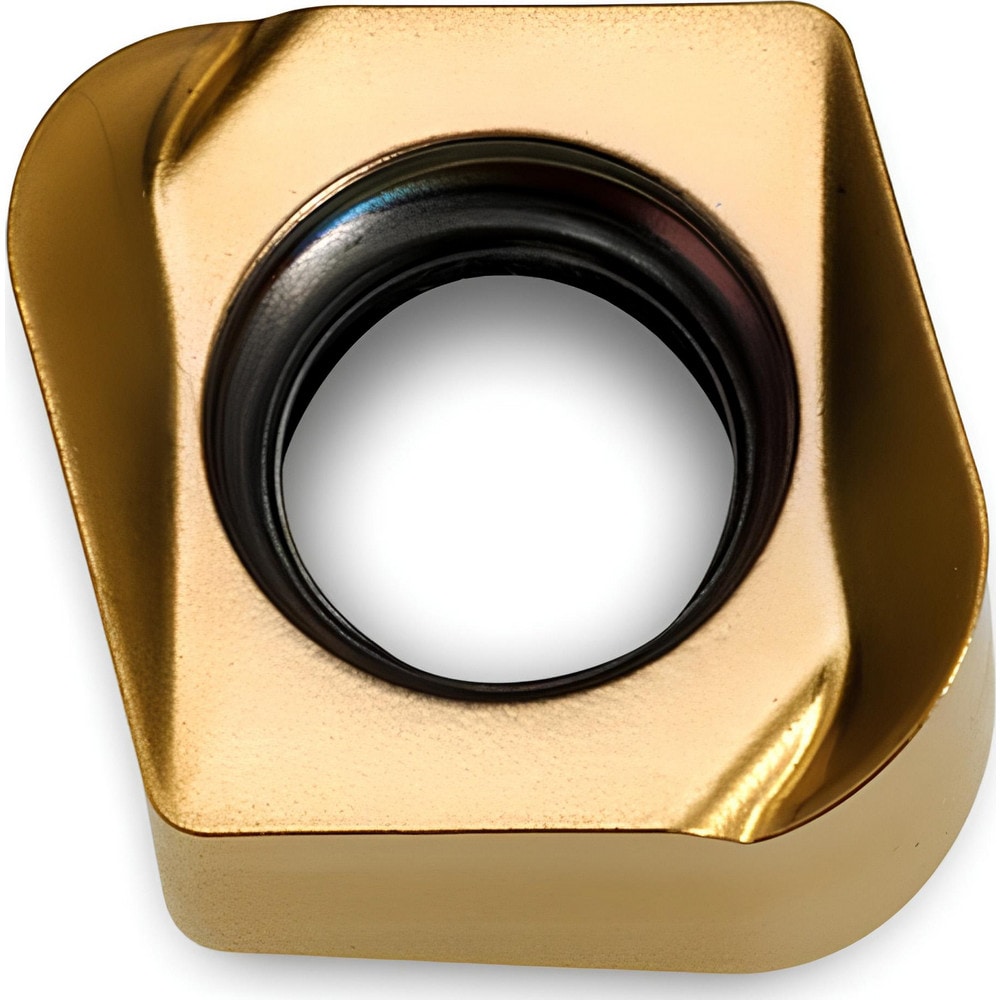

Brand: Ingersoll Cutting Tools / Part #: 6183320
Item #: 67327650
Brand: Ingersoll Cutting Tools
Model #: 6183320
Product Specifications
| Insert Style | MNHU |
| Insert Size Code | 060320 |
| Insert Material | Carbide |
| Manufacturer Grade | IN2530 |
| Inscribed Circle (Decimal Inch) | 0.2600 |
| Corner Radius (Inch) | 5/64 |
| Insert Hand | Right Hand |
| Series | MNHU |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.2000 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Parallelogram |
| Rake | Negative |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Ansi Code | MNHU060320R-PH |
| Rake Angle | 0.000 |
| Manufacturers Catalog Number | MNHU060320R-PH IN2530 |
| Cutter Series Compatibility | 1TJ1D; TJ1D; 1TV1D |
| Chip Breaker | PH |
| Cutting Direction | Right Hand |
| Shape | Parallelogram |
| Length of Cut (mm) | 5.0800 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Coating/Finish | TiN; TiAlN |
| Included Angle Degree | 86 |
| Width (Decimal Inch - 4 Decimals) | 0.2600 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1650 |
| Multi-Use Tool | No |
| Length (Decimal Inch - 4 Decimals) | 0.2600 |
