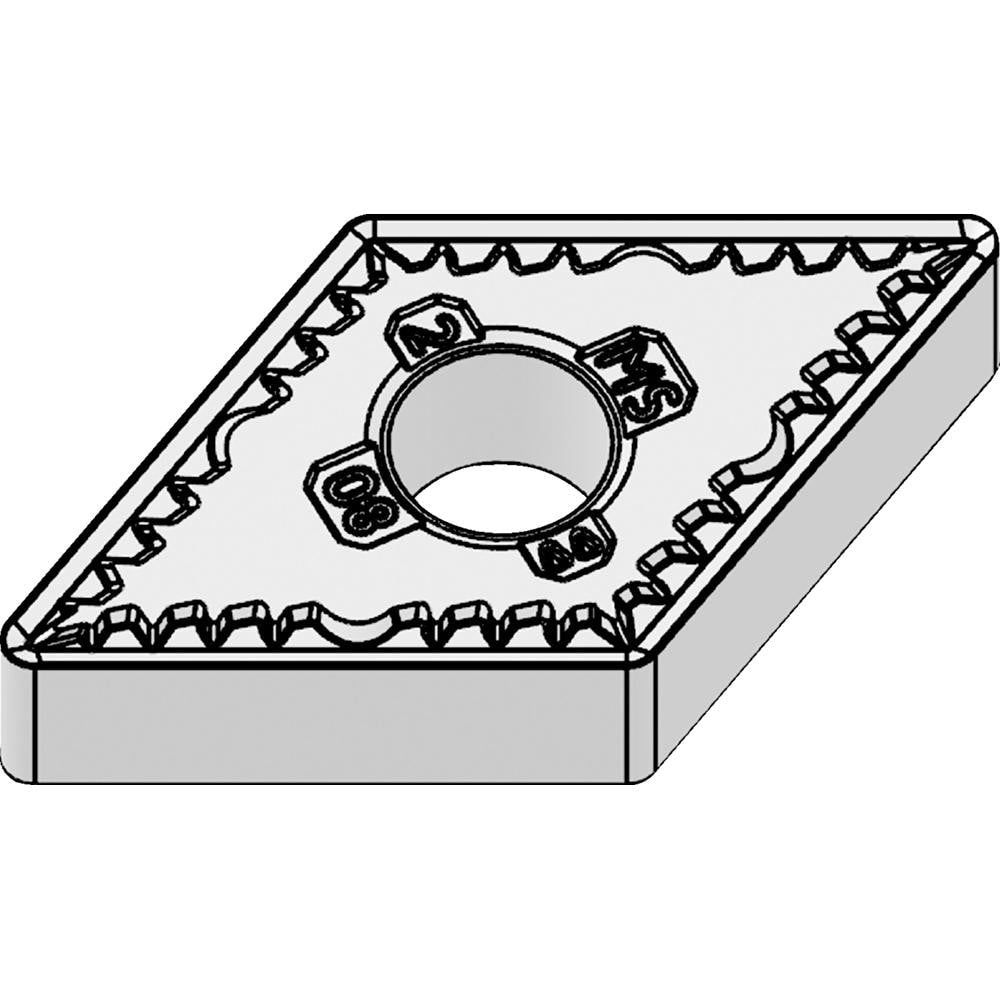

Brand: Widia / Part #: 5908794
Item #: 96213848
Brand: Widia
Model #: 5908794
Product Specifications
| Insert Style | DNMG |
| Insert Shape Code | D |
| Insert Size Code | 441 |
| Insert Shape | Diamond |
| Coating/Finish | Uncoated |
| Manufacturer Grade | WU10HT |
| Corner Radius (Decimal Inch) | 0.0157 |
| Insert Material | Carbide |
| Hole Diameter (Decimal Inch) | 0.2031 |
| Maximum Depth of Cut (Decimal Inch) | 0.3052 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Clearance Code | N |
| Tolerance Code | M |
| Included Angle | 55.00 |
| Relief Angle | 0.000 |
| Series | DNMG |
| Coating Process | Uncoated |
| Rake | Negative |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.6104 |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Super-alloys & Titanium |
| Primary Workpiece Material Code | S |
| Secondary Workpiece Material | Non-Ferrous Metal |
| Secondary Workpiece Material Code | N |
| Ansi Code | DNMG441MS |
| Iso Code | DNMG150604MS |
| Manufacturers Catalog Number | DNMG441MS |
| Cutting Direction | Neutral |
| Coating Classification | Uncoated |
| Chip Breaker | MS |
| Style | DNMG |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | External Turning; Internal Turning |
