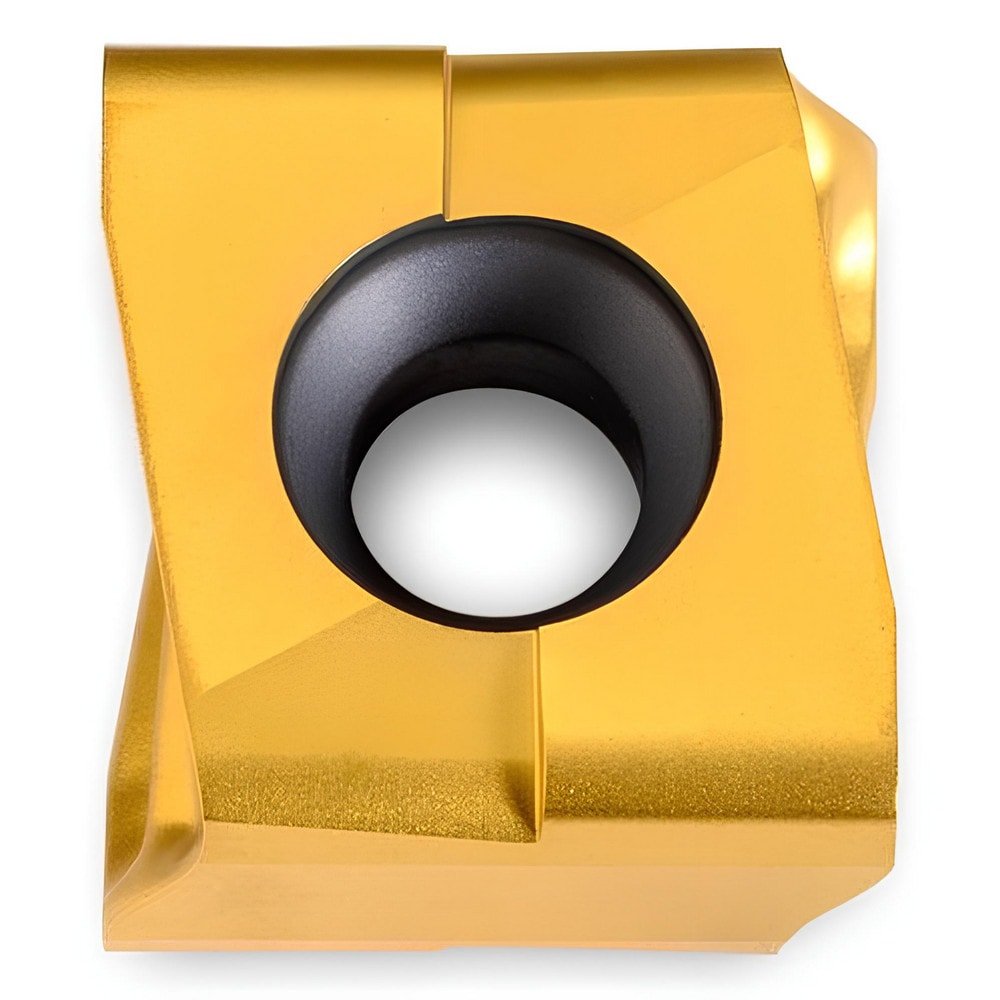

Brand: Ingersoll Cutting Tools / Part #: 2924393
Item #: 20922977
Brand: Ingersoll Cutting Tools
Model #: 2924393
Product Specifications
| Insert Style | DPM |
| Insert Size Code | 324 |
| Insert Material | Carbide |
| Manufacturer Grade | IN2535 |
| Thickness (Inch) | 9/32 |
| Inscribed Circle (Decimal Inch) | 0.4720 |
| Corner Radius (Inch) | 5/64 |
| Insert Hand | Left Hand |
| Series | DPM |
| Coating Process | PVD |
| Maximum Depth of Cut (mm) | 13.00 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Rectangle |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Super-alloys & Titanium |
| Primary Workpiece Material Code | S; M |
| Ansi Code | DPM324L3A1-MM K |
| Rake Angle | 11.000 |
| Manufacturers Catalog Number | DPM324L3A1-MM K IN2535 |
| Cutter Series Compatibility | EG.J |
| Chip Breaker | MM |
| Cutting Direction | Left Hand |
| Shape | Rectangle |
| Length of Cut (mm) | 13.0000 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | AlTiN; TiN |
| Included Angle Degree | 90 |
| Length | 13.00 |
| Width (Decimal Inch - 4 Decimals) | 0.4720 |
| Multi-Use Tool | No |
