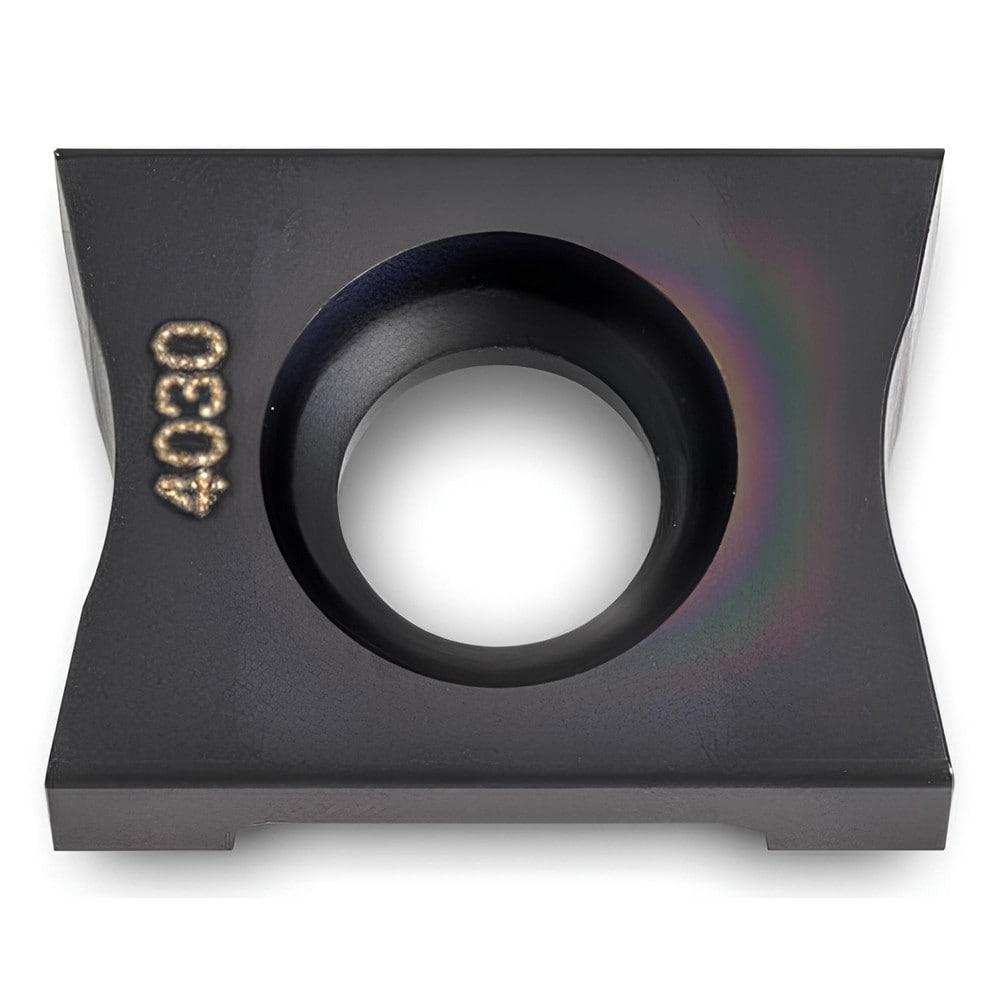

Brand: Ingersoll Cutting Tools / Part #: 2914967
Item #: 16351405
Brand: Ingersoll Cutting Tools
Model #: 2914967
Product Specifications
| Insert Style | IXH |
| Insert Size Code | 412 |
| Insert Material | Carbide |
| Manufacturer Grade | IN4030 |
| Inscribed Circle (Decimal Inch) | 0.5530 |
| Corner Radius (Inch) | 1/64 |
| Insert Hand | Neutral |
| Series | IXH |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.4200 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Rectangle |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Ansi Code | IXH412-G01 K |
| Manufacturers Catalog Number | IXH412-G01 K IN4030 |
| Cutter Series Compatibility | 3VJ4V |
| Chip Breaker | G01 |
| Cutting Direction | Neutral |
| Shape | Rectangle |
| Length of Cut (mm) | 10.6700 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | AlCrO; TiAlN |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.5530 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1530 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.4200 |
