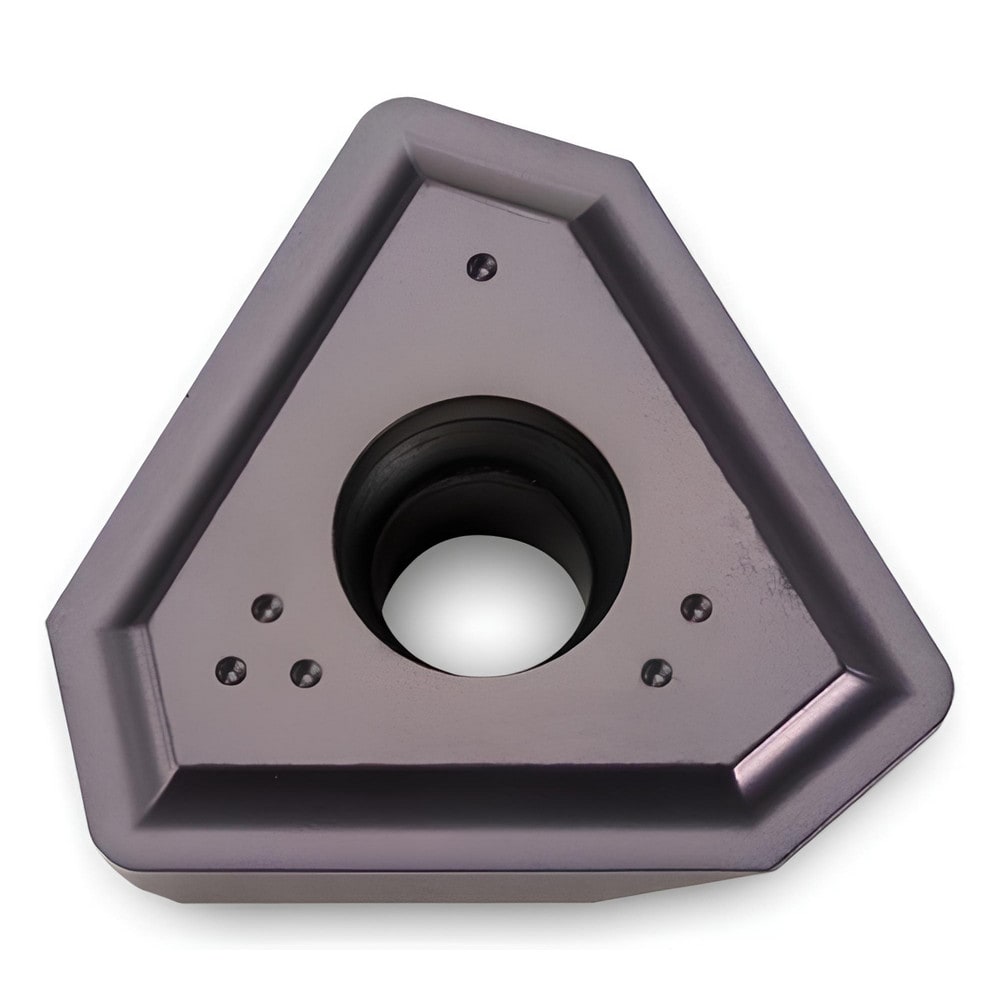

Brand: Ingersoll Cutting Tools / Part #: 4804952
Item #: 95145876
Brand: Ingersoll Cutting Tools
Model #: 4804952
Product Specifications
| Insert Style | TPMX |
| Insert Size Code | 240512 |
| Insert Material | Carbide |
| Manufacturer Grade | IN6542 |
| Thickness (mm) | 5.5100 |
| Inscribed Circle (Decimal Inch) | 0.5590 |
| Inscribed Circle (mm) | 14.20 |
| Cutting Direction | Right Hand |
| Corner Radius (Inch) | 3/64 |
| Chipbreaker | G |
| Series | TPMX |
| Coating Process | MTCVD |
| Shape | Triangle |
| Number Of Cutting Edges | 3 |
| Rake | Positive |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Manufacturers Catalog Number | TPMX240512L-G IN6542 |
| Drill Style | TBTA |
| Insert Size | 24 |
| Coating Classification | CVD |
| Included Angle Degree | 60 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2170 |
| Coating/Finish | Al2O3 |
