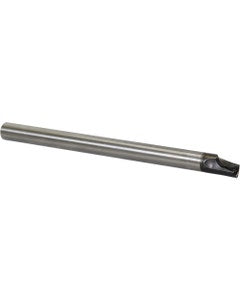

E20SSTLPL1625A Left-Hand, Positive Rake, Coolant-Through Boring Bar
Item #: KY96THC14277
Brand: Kyocera Precision Tools
Model #: THC14277
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 20 mm |
| Cutting Direction (HAND) | Left Hand |
| Functional Length (LF) | 250 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 250 mm |
| Rake Angle Axial (GAMP) | 5 Degrees |
| Head Length (LH) | 32 mm |
| Rake Angle Radial (GAMF) | 0 Degrees |
| Shank Height (H) | 19 mm |
| Series/List # | DYNB |
| Shank Length (LS) | 218 mm |
| Style | E...STLP-A |
| Functional Width (WF) | 13 mm |
| Measurement Type | Metric |
| Master Insert Identification (MIID) | | TPMT32 | TPGH32 | TPGB32 | TPMH32 | |
| Weight of Item (WT) | 2.181 |
| Minimum Bore Diameter (DMIN) | 25 mm |
