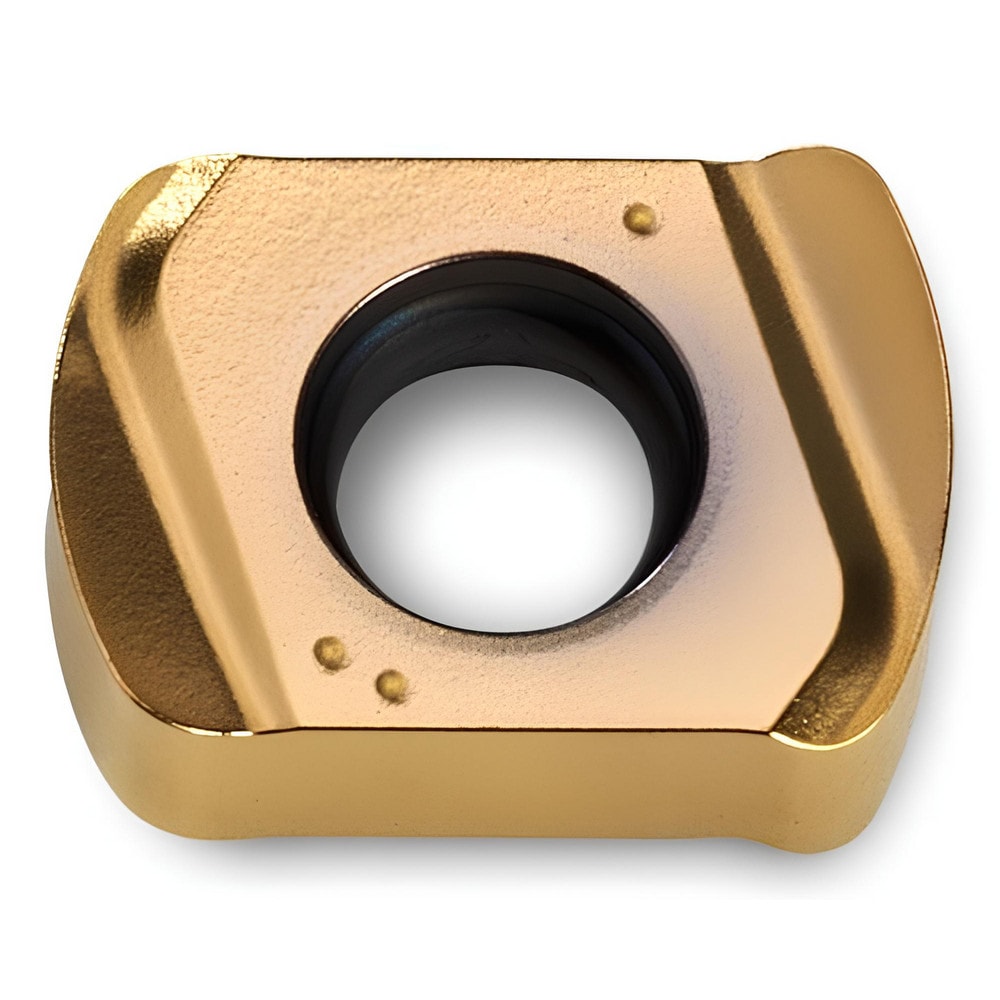

Brand: Ingersoll Cutting Tools / Part #: 5616366
Item #: 67315739
Brand: Ingersoll Cutting Tools
Model #: 5616366
Product Specifications
| Insert Style | UNLU |
| Insert Size Code | 0603 |
| Insert Material | Carbide |
| Manufacturer Grade | IN2035 |
| Inscribed Circle (Inch) | 1/4 |
| Corner Radius (Decimal Inch) | 0.0400 |
| Insert Hand | Right Hand |
| Series | UNLU |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.3540 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Rectangle |
| Rake | Negative |
| Primary Workpiece Material | Stainless Steel; Super-alloys & Titanium |
| Primary Workpiece Material Code | S; M |
| Ansi Code | UNLU0603M0TR-ML |
| Rake Angle | 0.000 |
| Manufacturers Catalog Number | UNLU0603M0TR-ML IN2035 |
| Cutter Series Compatibility | 1TG1F; TG1F |
| Chip Breaker | ML |
| Cutting Direction | Right Hand |
| Shape | Rectangle |
| Length of Cut (mm) | 8.9900 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Coating/Finish | TiAlN |
| Width (Decimal Inch - 4 Decimals) | 0.2510 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1420 |
| Multi-Use Tool | No |
| Length (Decimal Inch - 4 Decimals) | 0.3540 |
