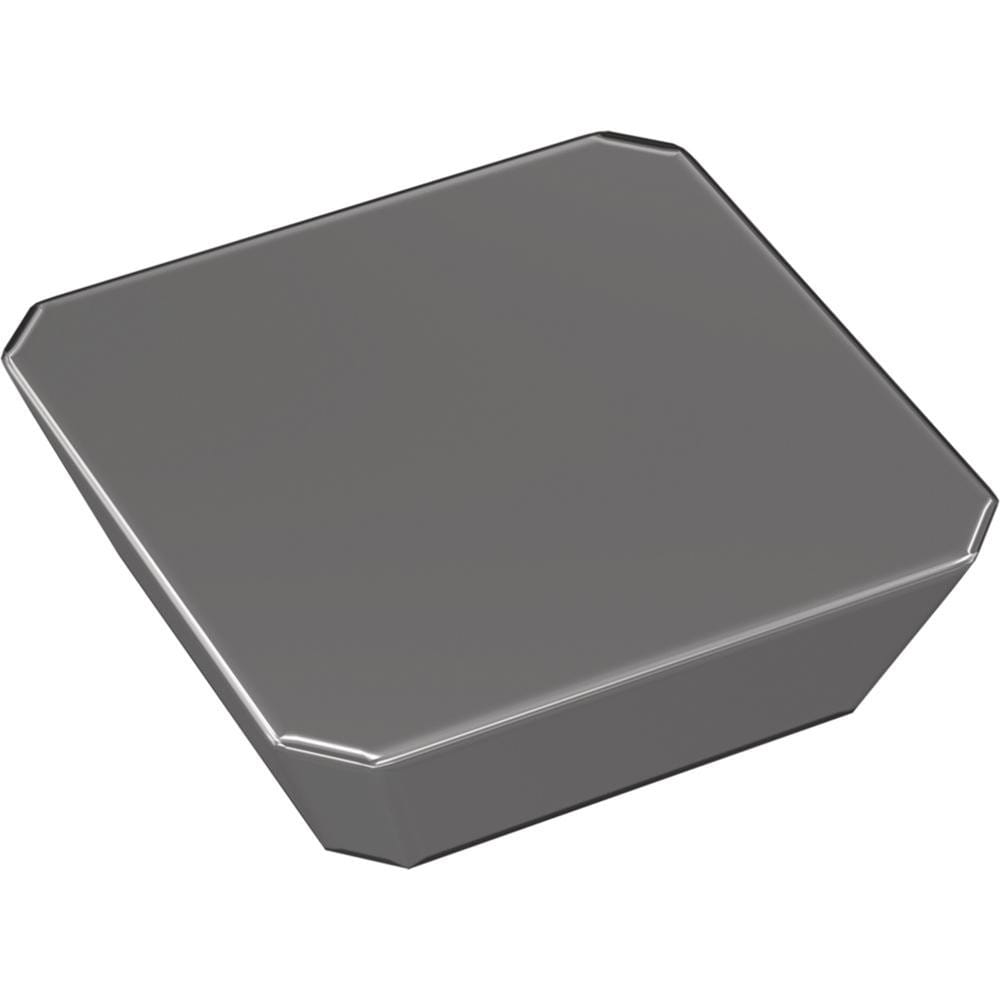

Brand: Widia / Part #: 6923424
Item #: 94070638
Brand: Widia
Model #: 6923424
Product Specifications
| Insert Style | SEKN |
| Insert Size Code | 1504 |
| Insert Size | 53 |
| Insert Material | Carbide |
| Width (Inch) | 5/8 |
| Manufacturer Grade | WP35CM |
| Length (Inch) | 5/8 |
| Thickness (Inch) | 3/16 |
| Inscribed Circle (Inch) | 5/8 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Insert Hand | Neutral |
| Relief Angle | 20.000 |
| Series | M68 |
| Coating Process | CVD |
| Hole Diameter (Decimal Inch) | 0.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.6250 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Square |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Secondary Workpiece Material | Super-alloys & Titanium |
| Secondary Workpiece Material Code | S |
| Ansi Code | SEKN53AFN1 |
| Iso Code | SEKN1504AFN1 |
| Manufacturers Catalog Number | SEKN53AFN1 |
| Cutter Series Compatibility | M68 SE1504 IN |
| Chip Breaker | None |
| Cutting Direction | Neutral |
| Material Application | High-Temperature Alloy; Stainless Steel; Steel |
| Shape | Square |
| Insert Holding Method | Clamp |
| Coating Classification | CVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.6250 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1875 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6250 |
