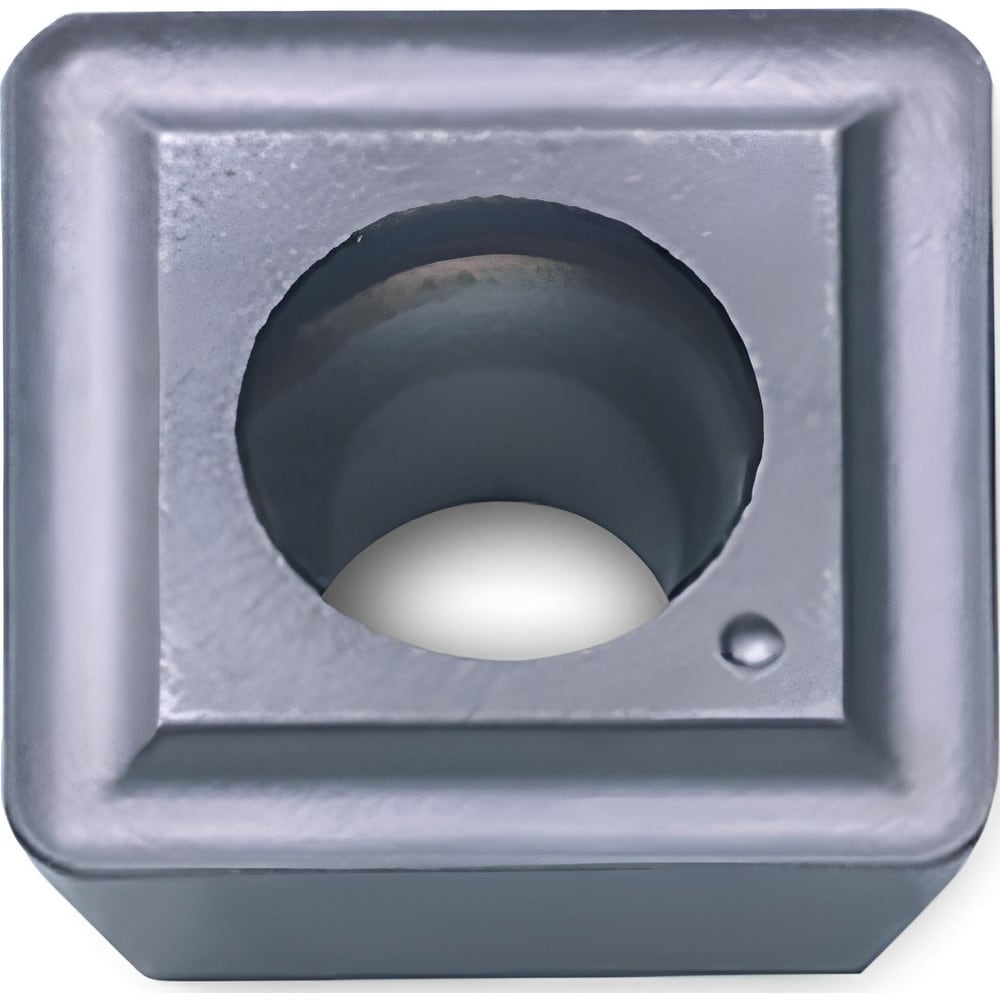

Brand: Ingersoll Cutting Tools / Part #: 5140256
Item #: 67322495
Brand: Ingersoll Cutting Tools
Model #: 5140256
Product Specifications
| Insert Style | SPLT |
| Insert Size Code | 07 |
| Insert Material | Carbide |
| Manufacturer Grade | IN6520 |
| Inscribed Circle (Inch) | 5/16 |
| Corner Radius (Inch) | 1/32 |
| Insert Hand | Neutral |
| Series | SPLT |
| Coating Process | MTCVD |
| Maximum Depth of Cut (Decimal Inch) | 0.2800 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Square |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Ansi Code | SPLT07T308N-PH |
| Rake Angle | 11.000 |
| Manufacturers Catalog Number | SPLT07T308N-PH IN6520 |
| Cutter Series Compatibility | DHU; Quad Plus Drill |
| Chip Breaker | PH |
| Cutting Direction | Neutral |
| Shape | Square |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.3120 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1630 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.3120 |
