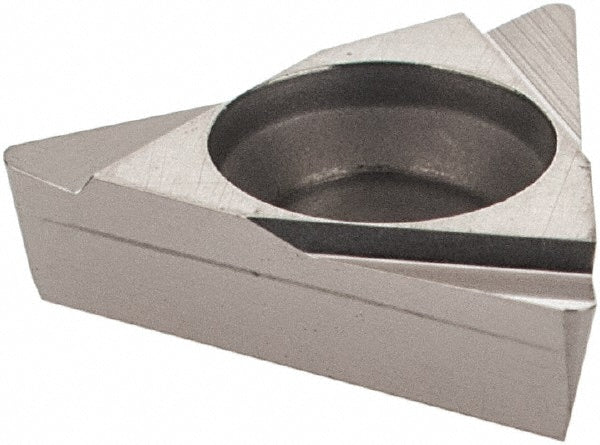

Brand: Iscar / Part #: 5504408
Item #: 52740701
Brand: Iscar
Model #: 5504408
Product Specifications
| Insert Style | TPGX |
| Insert Size Code | 731 |
| Insert Material | Cermet |
| Material Grade | C6; C7; C8 |
| Thickness (mm) | 2.38 |
| Thickness (Inch) | 3/32 |
| Manufacturer Grade | IC20N |
| Inscribed Circle (Inch) | 7/32 |
| Inscribed Circle (mm) | 5.56 |
| Inscribed Circle (Decimal Inch) | 0.2189 |
| Hole Diameter (Decimal Inch) | 0.0984 |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0980 |
| Insert Hand | Left Hand |
| Corner Radius (Decimal Inch) | 0.0157 |
| Corner Radius (Inch) | 1/64 |
| Relief Angle | 11 |
| Rake | Positive |
| Series | Isoturn |
| Coating Process | Uncoated |
| Included Angle | 60 |
| Insert Shape | Triangle |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Shape | Triangle |
| Length (Decimal Inch - 4 Decimals) | 0.3748 |
| Coating/Finish | Uncoated |
| Thickness (Decimal Inch - 4 Decimals) | 0.0937 |
| Length | 9.52 |
