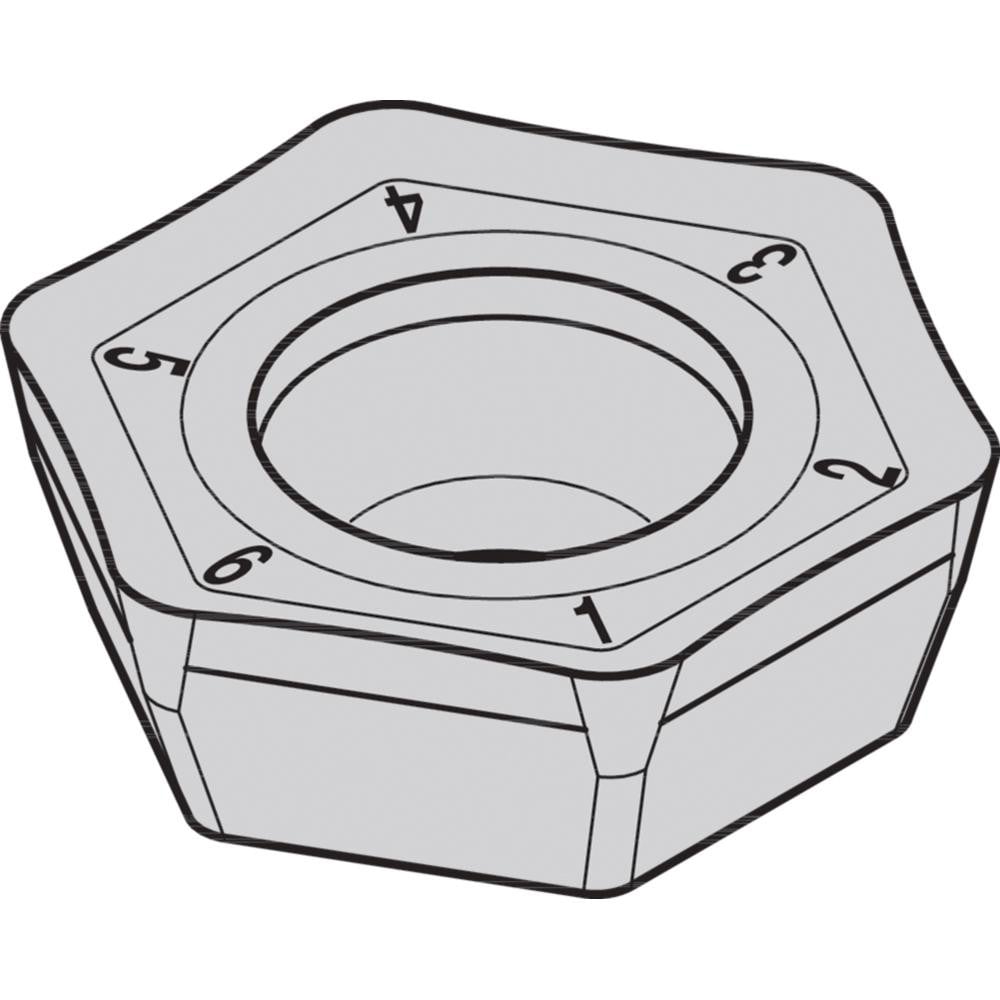

Brand: Widia / Part #: 6180315
Item #: 94474681
Brand: Widia
Model #: 6180315
Product Specifications
| Insert Style | HPPT |
| Insert Size Code | 06T3 |
| Insert Size | 22 |
| Insert Material | Carbide |
| Manufacturer Grade | WS40PM |
| Thickness (Inch) | 5/32 |
| Inscribed Circle (Decimal Inch) | 0.4320 |
| Corner Radius (Decimal Inch) | 0.0387 |
| Insert Hand | Neutral |
| Relief Angle | 11.000 |
| Series | M640 |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Maximum Depth of Cut (Decimal Inch) | 0.2160 |
| Number Of Cutting Edges | 6 |
| Insert Shape | Hexagon |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Secondary Workpiece Material | Non-Ferrous Metal |
| Secondary Workpiece Material Code | N |
| Ansi Code | HPPT225DZENGD |
| Iso Code | HPPT06T3DZENGD |
| Manufacturers Catalog Number | HPPT225DZENGD |
| Cutter Series Compatibility | M640 HP06T3 IN |
| Chip Breaker | GD |
| Cutting Direction | Neutral |
| Material Application | High-Temperature Alloy; Stainless Steel; Steel |
| Shape | Hexagon |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiN; TiAlN |
| Included Angle Degree | 120 |
| Width (Decimal Inch - 4 Decimals) | 0.4320 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1563 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.4320 |
