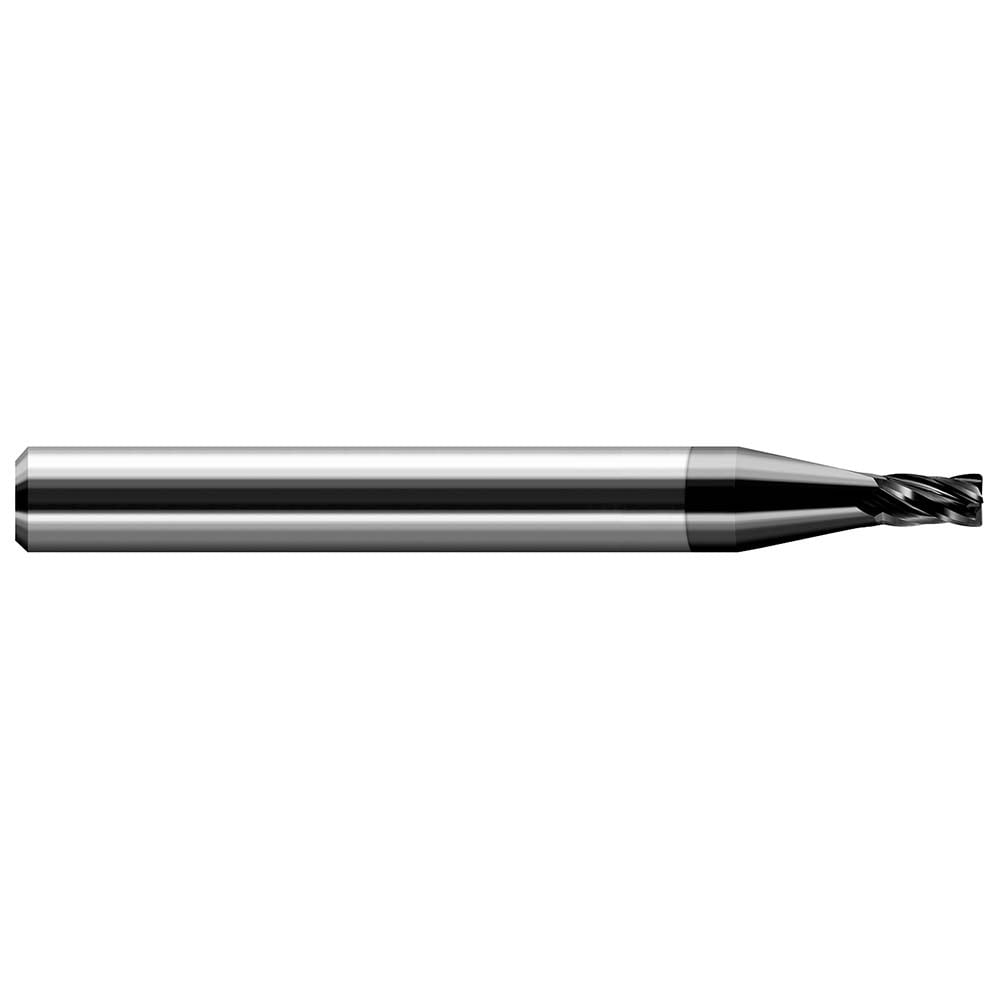

Brand: Harvey Tool / Part #: 993862-C4
Item #: 82835315
Brand: Harvey Tool
Model #: 993862-C4
Product Specifications
| Mill Diameter (Inch) | 1/16 |
| Corner Radius (Decimal Inch) | 0.0050 |
| Coating/Finish | Amorphous Diamond |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 4 |
| Single Or Double End | Single |
| Overall Length (Inch) | 1-1/2 |
| Length of Cut (Inch) | 3/32 |
| Cutting Direction | Right Hand |
| Mill Diameter (Decimal Inch) | 0.0620 |
| Flute Direction | Right Hand |
| Overall Length (Decimal Inch) | 1.5000 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.0930 |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Centercutting | Yes |
| Variable Index | No |
| Variable Helix | No |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Shank Diameter (Inch) | 1/8 |
| Series | Miniature End Mills - Corner Radius - Stub & Standard |
