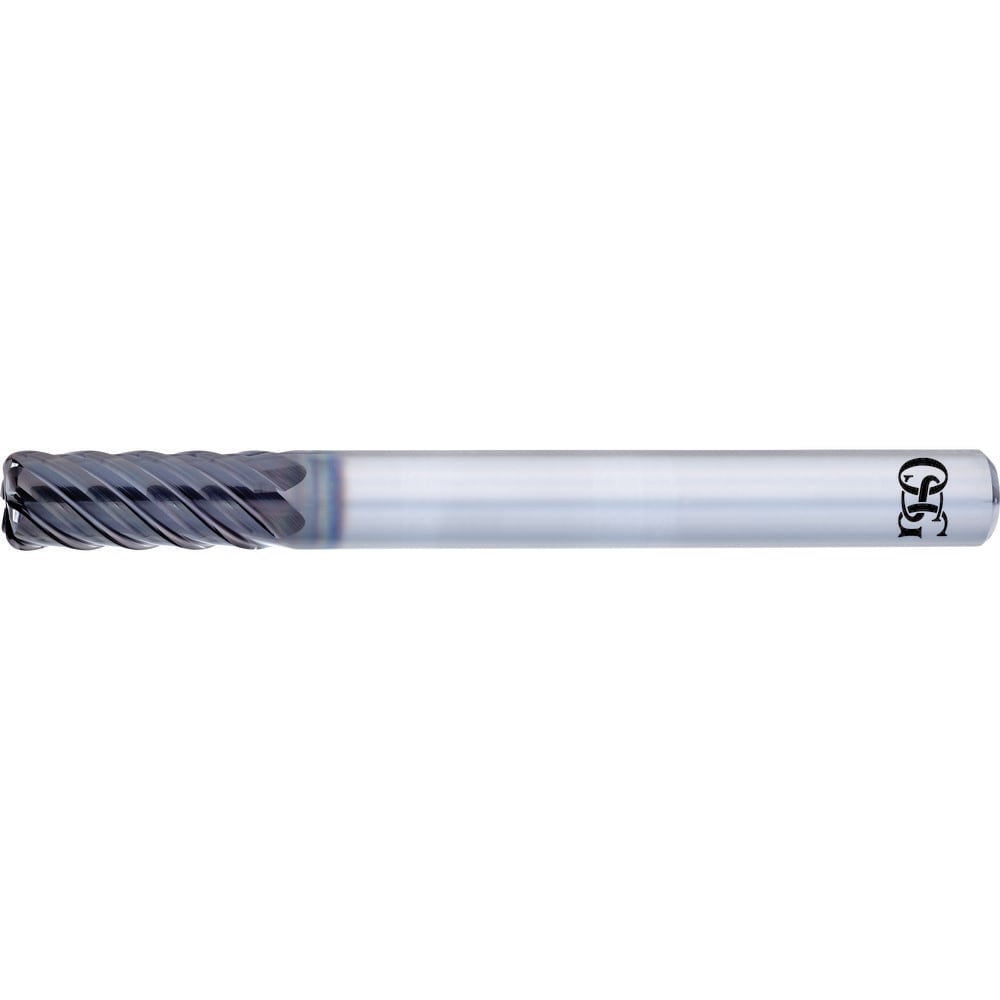

Brand: OSG / Part #: 84703023
Item #: 80052442
Brand: OSG
Model #: 84703023
Product Specifications
| Mill Diameter (Inch) | 1 |
| Corner Radius (Decimal Inch) | 0.09 |
| Coating/Finish | DUROREY |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 8 |
| Single Or Double End | Single End |
| Overall Length (Inch) | 4-1/2 |
| Length of Cut (Inch) | 1/2 |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Mill Diameter (Decimal Inch) | 1.0000 |
| Flute Direction | Right Hand |
| Helix Angle | 43 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Type | Regular |
| Flute Type | Helical |
| Extended Reach | No |
| Shank Type | Round |
| Centercutting | No |
| Variable Index | Yes |
| Variable Helix | No |
| Material Removal Type | Finishing |
| Shank Diameter (Inch) | 1 |
| Corner Radius Tolerance | 0 ~ -0.0008" |
| Primary Workpiece Material | Hard Material; Steel |
| Primary Workpiece Material Code | H |
| Secondary Workpiece Material | Steel |
| Secondary Workpiece Material Code | P |
| Series | 8470 |
| Material Application | Alloy Steel; Die Steel; Hardened Steel |
| Model Number | 8470 |
| Helix Style | High |
| Manufacturers Catalog Number | 84703023 |
