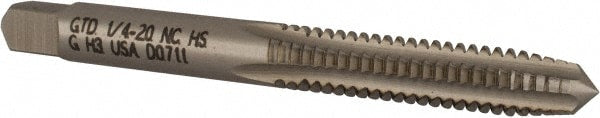

Brand: Widia / Part #: 2957247
Item #: 70741764
Brand: Widia
Model #: 2957247
Product Specifications
| Tap Type | Standard |
| Thread Size (Inch) | 1/4-20 |
| Thread Limit | H3 |
| Class Of Fit | 3B |
| Number Of Flutes | 4 |
| Chamfer | Plug |
| Material | High Speed Steel |
| Coating/Finish | Bright/Uncoated |
| Threads per Inch | 20 |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Thread Standard | UNC |
| Thread Pitch (Decimal Inch) | 0.0500 |
| Overall Length (Decimal Inch) | 2.5000 |
| Thread Length (Decimal Inch) | 1.0000 |
| Thread Depth (Decimal Inch) | 1.0000 |
| Oversize | No |
| Application | Blind Hole Threading; Through-Hole Threading |
| Shank Diameter (Decimal Inch) | 0.2550 |
| Tapping Depth (Decimal Inch) | 1.0000 |
| Square Length (Decimal Inch) | 0.3125 |
| Square Size (Decimal Inch) | 0.1910 |
| Material Application | Non-Ferrous Metal; Cast Iron |
| Series | 2303; 5303 |
| Shank Length (Decimal Inch) | 1.5000 |
