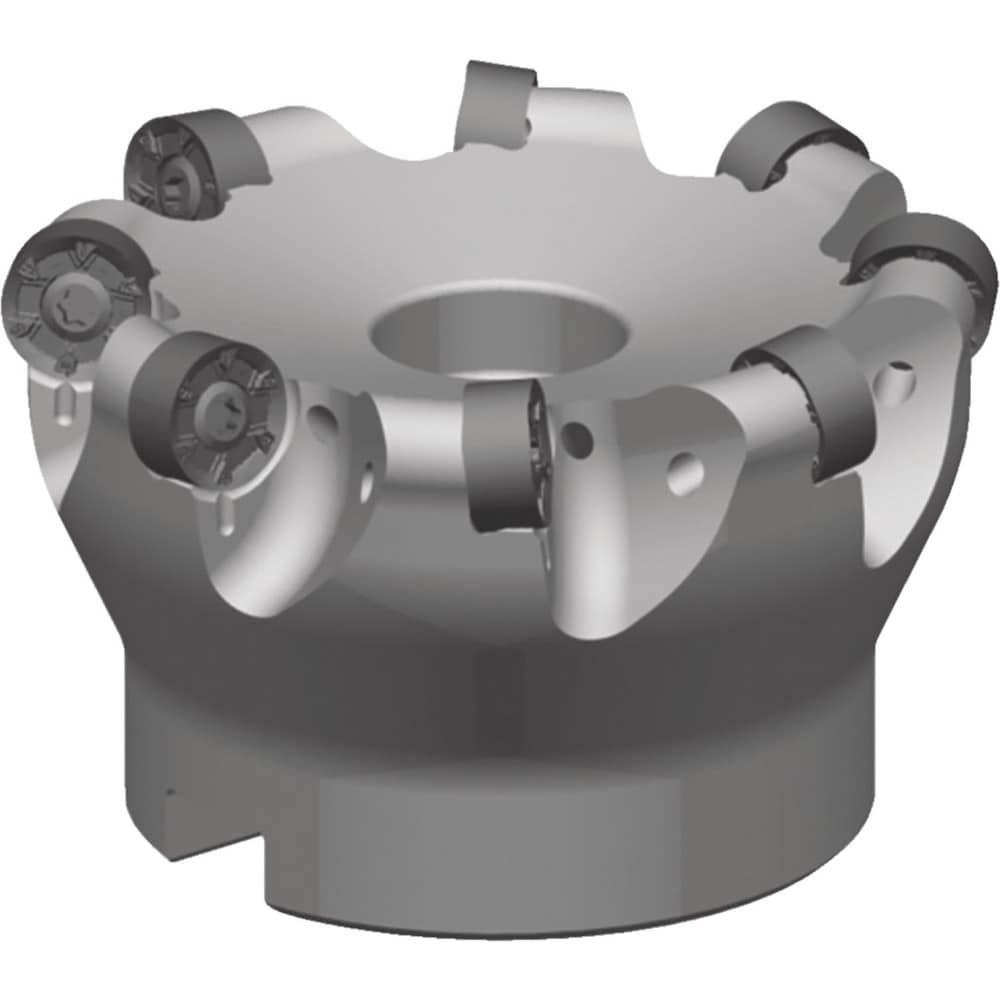

Brand: Widia / Part #: 5068406
Item #: 97210819
Brand: Widia
Model #: 5068406
Product Specifications
Minimum Cutting Diameter (Decimal Inch) | 3.5276 |
Maximum Cutting Diameter (Decimal Inch) | 4.0000 |
Maximum Depth of Cut (Decimal Inch) | 0.1181 |
Arbor Hole Diameter (mm) | 1.50 |
Compatible Insert Size Code | RN_J1204M0___ |
Maximum Ramping Angle | 0.16 degree |
Cutter Style | M200 |
Cutting Direction | Right Hand |
Insert Holding Method | Screw |
Series | M200 |
Hub Diameter (Decimal Inch) | 3.3799 |
Overall Height (Inch) | 2 |
Overall Height (Decimal Inch) | 2.0000 |
Maximum RPM | 21970 |
Tool Application | Profiling; Pocketing; Milling; Slotting; Face Milling |
Tool Performance | General Purpose |
Primary Workpiece Material | Hard Material; Non-Ferrous Metal; Super-Alloys & Titanium; Stainless Steel; Cast Iron; Steel |
Primary Workpiece Material Code | P; S; H; K; M; N |
Number Of Cutter Inserts | 9 |
Coolant Through | Yes |
