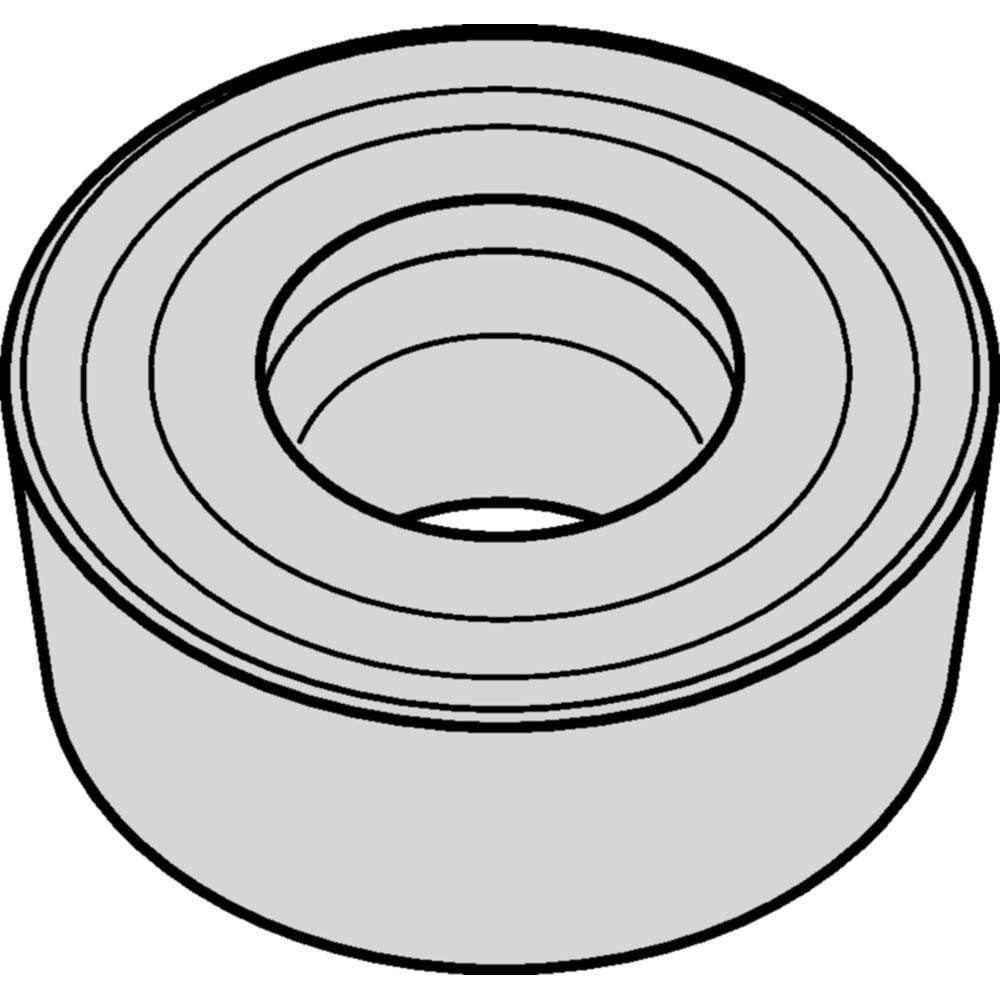

Brand: Widia / Part #: 2028129
Item #: 95221578
Brand: Widia
Model #: 2028129
Product Specifications
| Insert Style | RCMT |
| Insert Shape Code | R |
| Insert Size Code | 803 |
| Insert Shape | Round |
| Coating/Finish | Uncoated |
| Manufacturer Grade | THM |
| Corner Radius (Decimal Inch) | 0.1575 |
| Insert Material | Carbide |
| Hole Diameter (Decimal Inch) | 0.1339 |
| Maximum Depth of Cut (mm) | 4.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1575 |
| Inscribed Circle (Decimal Inch) | 0.3150 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Clearance Code | C |
| Tolerance Code | M |
| Relief Angle | 7.000 |
| Series | RCMT |
| Coating Process | Uncoated |
| Rake | Positive |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.3150 |
| Number Of Cutting Edges | 1 |
| Primary Workpiece Material | Super-alloys & Titanium |
| Primary Workpiece Material Code | S |
| Secondary Workpiece Material | Non-Ferrous Metal |
| Secondary Workpiece Material Code | N |
| Ansi Code | RCMT0803M0 |
| Iso Code | RCMT0803M0 |
| Manufacturers Catalog Number | RCMT0803M0 |
| Cutting Direction | Neutral |
| Coating Classification | Uncoated |
| Chip Breaker | None |
| Style | RCMT |
| Width (Decimal Inch - 4 Decimals) | 0.3150 |
| Multi-Use Tool | Yes |
| Full Radius | Yes |
| Multi-Use Application | External Turning; Internal Turning |
