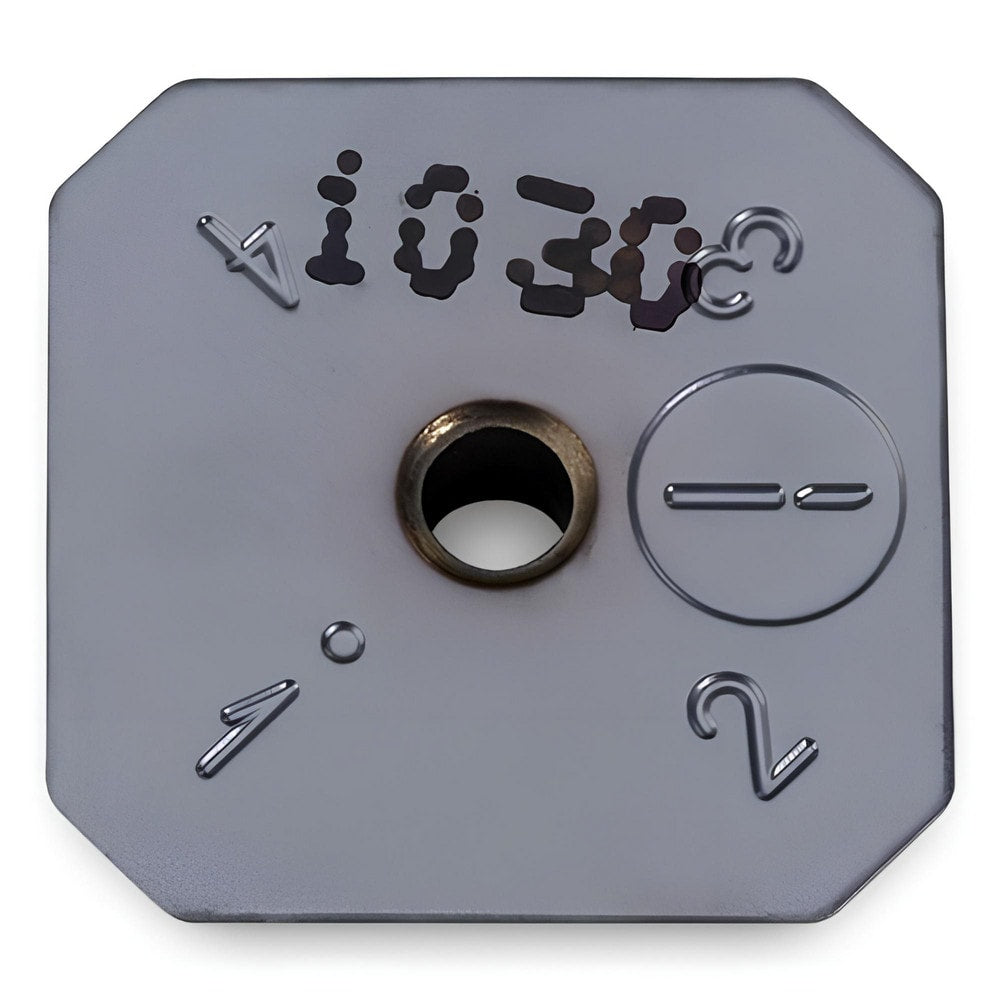

Brand: Ingersoll Cutting Tools / Part #: 5840294
Item #: 67312116
Brand: Ingersoll Cutting Tools
Model #: 5840294
Product Specifications
| Insert Style | SEKN |
| Insert Size Code | 1203 |
| Insert Material | Carbide |
| Manufacturer Grade | IN5015 |
| Length (Inch) | 1/2 |
| Thickness (Inch) | 1/8 |
| Inscribed Circle (Inch) | 1/2 |
| Corner Radius (Decimal Inch) | 0.0300 |
| Insert Hand | Neutral |
| Series | SEKN |
| Coating Process | CVD |
| Maximum Depth of Cut (Decimal Inch) | 0.2700 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Square |
| Rake | Positive |
| Primary Workpiece Material | Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K |
| Ansi Code | SEKN1203AFTN |
| Rake Angle | 20.000 |
| Manufacturers Catalog Number | SEKN1203AFTN IN5015 |
| Chip Breaker | Flat Top |
| Cutting Direction | Neutral |
| Shape | Square |
| Length of Cut (mm) | 6.8600 |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiCN; TiN |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Multi-Use Tool | No |
