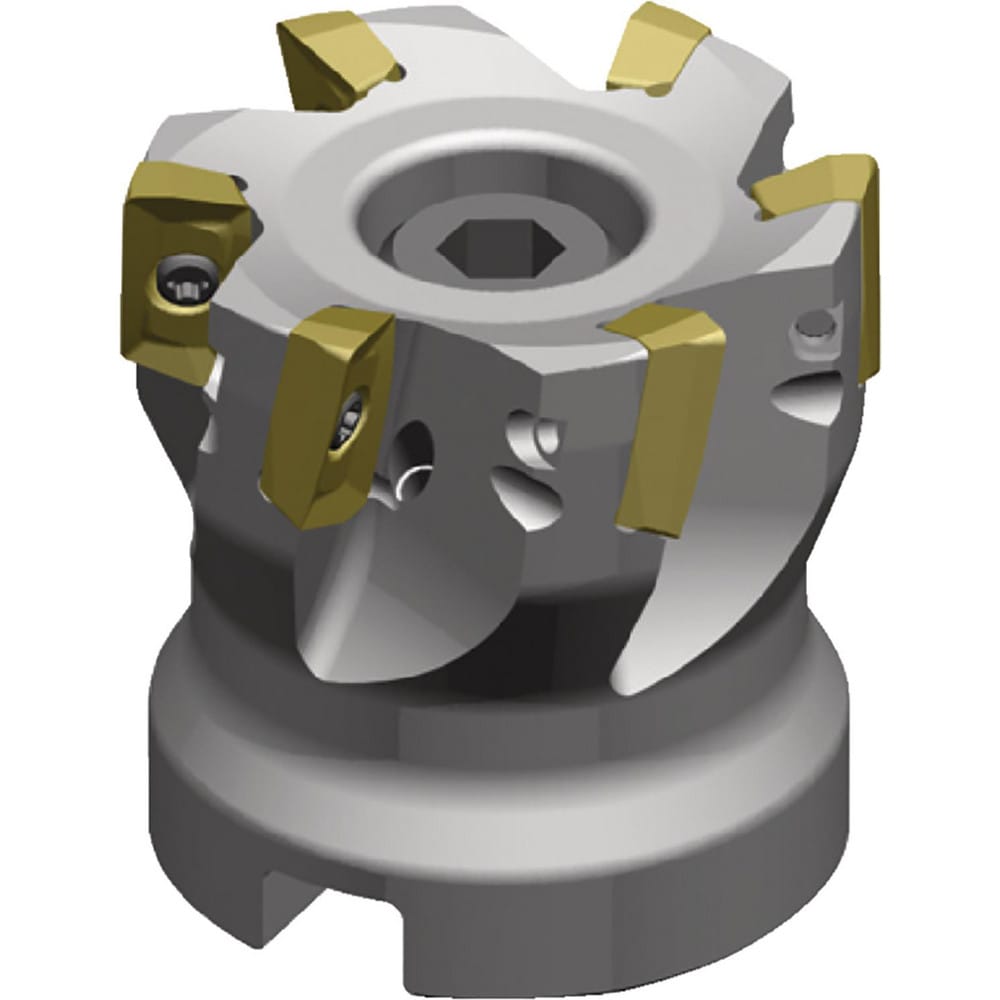

Brand: Widia / Part #: 5988026
Item #: 09909557
Brand: Widia
Model #: 5988026
Product Specifications
| Minimum Cutting Diameter (mm) | 63.00 |
| Maximum Cutting Diameter (mm) | 63.00 |
| Maximum Depth of Cut (mm) | 16.00 |
| Arbor Hole Diameter (mm) | 22.00 |
| Compatible Insert Size Code | XD.T1704.. |
| Maximum Ramping Angle | 2.1 |
| Cutter Style | VSM |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Negative (Radial); Positive (Axial) |
| Rake Angle | -5.700 |
| Series | VSM17 |
| Maximum Body Diameter (mm) | 60.50 |
| Overall Height (Mm - 5 Decimals) | 40.00000 |
| Keyway Width (mm) | 10.48 |
| Hub Diameter (mm) | 50.000 |
| Maximum RPM | 22400.000 |
| Tool Application | Milling; Slotting; Ramping |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Number of Adjustable Pockets | 0 |
| ISO Number | VSM17D063Z05S22XD17 |
| Coolant Hole Diameter (Decimal Inch) | 0.0980 |
| Complete Insert Compatibility | XD_T1704__PE_R___ |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | VSM17D063Z05S22XD17 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 5 |
| Number Of Flutes | 5 |
