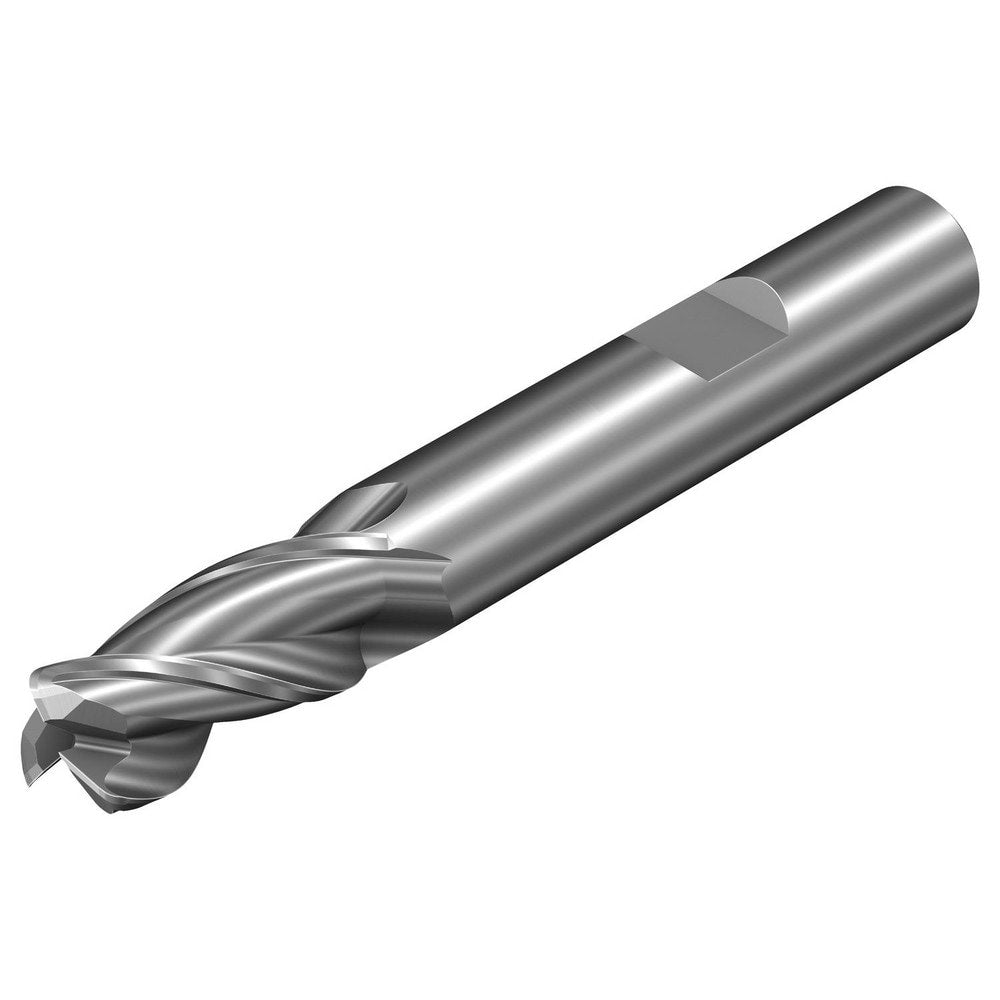

Brand: Sandvik Coromant / Part #: 8386864
Item #: 67707430
Brand: Sandvik Coromant
Model #: 8386864
Product Specifications
| Mill Diameter (mm) | 25.00 |
| Corner Radius (mm) | 4.00 |
| Coating/Finish | Uncoated |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 3 |
| Single Or Double End | Single |
| Overall Length (mm) | 130.0000 |
| Length of Cut (mm) | 50.0000 |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Mill Diameter (Decimal Inch) | 0.0388 |
| Flute Direction | Right Hand |
| Helix Angle | 35 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Type | Standard |
| Extended Reach | No |
| Shank Type | Weldon |
| Centercutting | Yes |
| Variable Helix | Yes |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (mm) | 25.0000 |
| Minimum Helix Angle | 25 |
| Maximum Helix Angle | 35 |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Material Grade | H10F |
| Series | CoroMill? Dura |
| Material Application | Non-Ferrous Metal |
| Coating Classification | Uncoated |
| Helix Style | Variable |
| Manufacturers Catalog Number | 1K233-2500-400-NB H10F |
