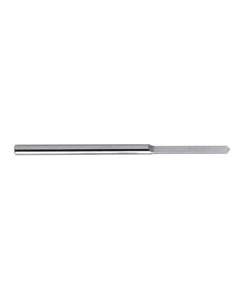

1.8 mm Dia. × 2 mm Shank Dia. × 38 mm OAL × 18 mm LCF, 120 Degrees, 10xD, Uncoated - Solid Carbide Drills
Item #: FB501100180R
Brand: GMauvias
Model #: 1100180R
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 1.8 mm |
| Tool Type | Micro Drills |
| Length Group | 10xD |
| Usable Length (LU) | 18 mm |
| Coating | Uncoated |
| Length Chip Flute (LCF) | 18 mm |
| Connection Diameter Machine Side (DCONMS) | 2 mm |
| Overall Length (OAL) | 38 mm |
| Point Angle (SIG) | 120 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 18 mm |
