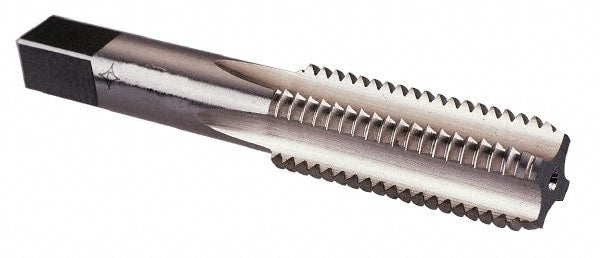

Brand: Widia / Part #: 2749447
Item #: 70736632
Brand: Widia
Model #: 2749447
Product Specifications
| Tap Type | Standard |
| Thread Size (Inch) | 5/8-11 |
| Thread Limit | H3 |
| Class Of Fit | 3B |
| Number Of Flutes | 4 |
| Chamfer | Bottoming |
| Material | High Speed Steel |
| Coating/Finish | Bright/Uncoated |
| Threads per Inch | 11 |
| Thread Direction | Left Hand |
| Coolant Through | No |
| Thread Standard | UNC |
| Thread Pitch (Decimal Inch) | 0.0910 |
| Overall Length (Decimal Inch) | 3.8120 |
| Thread Length (Decimal Inch) | 1.8120 |
| Thread Depth (Decimal Inch) | 1.8120 |
| Oversize | No |
| Application | Blind Hole Threading; Through-Hole Threading |
| Shank Diameter (Decimal Inch) | 0.4800 |
| Tapping Depth (Decimal Inch) | 1.8120 |
| Square Length (Decimal Inch) | 0.5625 |
| Square Size (Decimal Inch) | 0.3600 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Series | 5303L; 5305L |
| Shank Length (Decimal Inch) | 2.0000 |
