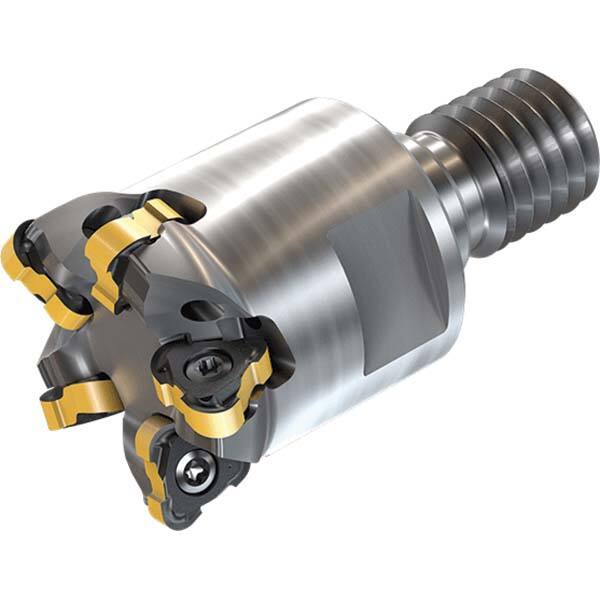

Iscar - Indexable Copy End Mills Cutting Diameter (mm): 30 Cutting Diameter (Inch): 1.1810
Item #: 90395278
Brand: Iscar
Model #: 3320746
Product Specifications
Indexable Copy End Mills; Cutting Diameter (mm): 30 ; Cutting Diameter (Inch): 1.1810 ; Cutting Diameter (Decimal Inch): 1.1810 ; Maximum Depth of Cut (mm): 1.00 ; Maximum Depth of Cut (Decimal Inch): 0.0390 ; Shank Type: Threaded
| Cutting Diameter (mm) | 30 |
| Cutting Diameter (Inch) | 1.1810 |
| Cutting Diameter (Decimal Inch) | 1.1810 |
| Maximum Depth of Cut (mm) | 1.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0390 |
| Shank Type | Threaded |
| Modular Connection Thread Size | M12 |
| Shank Diameter (mm) | 21.0000 |
| Shank Diameter (Inch) | 0.8260 |
| Shank Diameter (Decimal Inch) | 0.8260 |
| Number of Cutter Inserts | 5 |
| Insert Style | TR |
| Toolholder Style | TR6 |
| Series | TOR6MILL |
| Overall Length (mm) | 51.7000 |
| Overall Length (Decimal Inch) | 2.03500 |
| Toolholder Material | Steel |
| Through Coolant | Coolant Through |
| Weldon Flat | No |
| Number of Flutes | 5 |
| Head Length (mm) | 29.70 |
| Head Length (Decimal Inch) | 1.1690 |
| Maximum Cutting Diameter (Decimal Inch) | 0.9840 |
