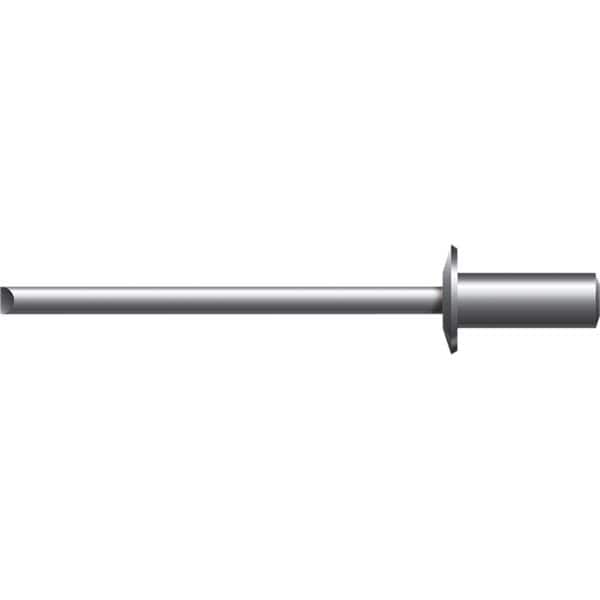

Marson - Blind Rivets Type: Closed End Head Type: Button
Item #: 10333029
Brand: Marson
Model #: M56001
Features and Benefits
Button head fasteners have cylindrical heads with curved tops and flat bearing surfaces. They slightly protrude out of the workpiece and are used for aesthetic purposes.
Aluminum has a high strength-to-weight ratio and is wear resistant, nonmagnetic and conductive. It is easier to form and machine than steel and is naturally noncorrosive.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
Product Specifications
Blind Rivets; Type: Closed End ; Head Type: Button ; Size Code: 42 ; Rivet Material: Aluminum ; Mandrel Material: Steel ; Minimum Grip (Decimal Inch): 0.0630
| Type | Closed End |
| Head Type | Button |
| Size Code | 42 |
| Rivet Material | Aluminum |
| Mandrel Material | Steel |
| Minimum Grip (Decimal Inch) | 0.0630 |
| Maximum Grip (Decimal Inch) | 0.1250 |
| Head Diameter (Decimal Inch) | 0.236 |
| Minimum Hole Diameter (Decimal Inch) | 0.1290 |
| Maximum Hole Diameter (Decimal Inch) | 0.1330 |
| Drill Size (Wire) | #30 |
| Body Diameter (Inch) | 0.125 |
| Fastener Standard | IFI 126 Grade 19 |
| Head Height (Decimal Inch) | 0.0400 |
