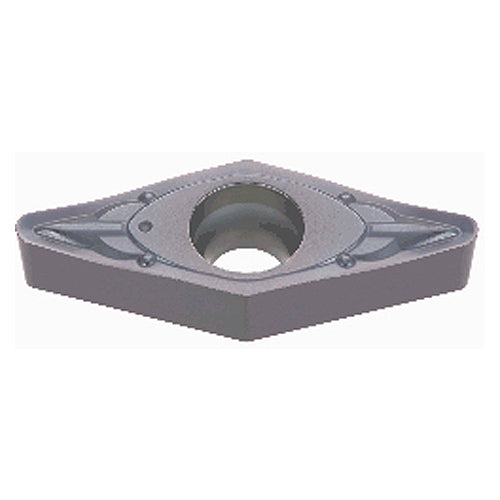

VBMT 221 PSS T6130
Item #: TG556994566
Brand: Tungaloy
Model #: 6994566
| Product Specifications | |
|---|---|
| Applicable Material | | Stainless Steel | |
| Tool Type | Turn Positive Inserts |
| Application | | Inserts | |
| Fixing Hole Diameter (D1) | 0.11″ |
| Insert Style | VBMT |
| Min D.O.C. | 0.0118″ |
| Corner Radius (RE) | 0.016″ |
| Depth of Cut Maximum (APMX) | 0.0787″ |
| Insert Size | 221 |
| Min. Turning Feed (ft(min)) | 0.0039 ″/rev |
| Cutting Edge Length (L) | 0.441″ |
| Max. Turning Feed (ft(max)) | 0.0118 ″/rev |
| Insert Thickness (S) | 1/8″ |
| Clearance Angle Major (AN) | 5 Degrees |
| Inscribed Circle Diameter (IC) | 1/4″ |
| Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide |
| Chip Breaker Type | PSS |
| Coating | TiCN+TiN |
| Measurement Type | Inch |
| Grade | T6130 |
| Body Material | Carbide |
